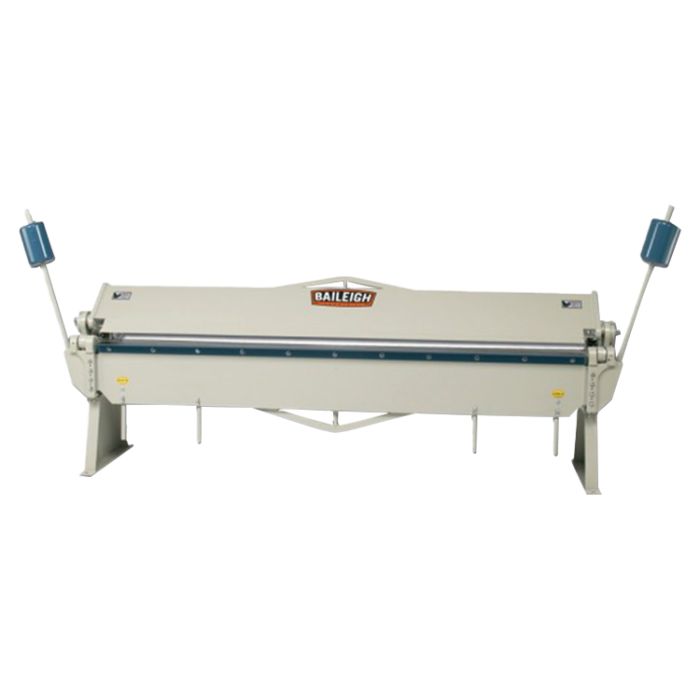

Baileigh Industrial 1004638 10' HB-12014 Straight Sheet Metal Brake
Ships direct from manufacturer
With a welded steel frame, this manual sheet metal bender is strong enough to bend 14 gauge mild steel across its full length of 10 feet (120").
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Baileigh Industrial |
|---|
| Condition | New |
|---|
| Features |
- 10 foot sheet metal brake made using only the highest-quality materials
- Machined bending leaf pivots ride in precision bushings, allowing for better bend tolerances and minimizing operator fatigue
- 2 massive counterweights on the bending apron reduce the effort of bending at maximum capacity
- 1-piece bending blade, machined to perfection, achieves tight bend radiuses
- Top beam depth adjusts to fit different material thickness
- Comes standard with stop rod to ensure repeatability for production runs
- Thick, fully-welded steel plate frame maintains accuracy and keeps the machine from buckling at full capacity
- Baileigh Industrial covers this 10 foot sheet metal brake with a 1-year parts warranty
|
|---|
| Type | Metal Brake |
|---|
| Thickness (SS) | 14 Gauge. (18 Gauge.) |
|---|
| Capacity | 144" |
|---|
| Beam Adjustment | 1" |
|---|
| Bend Angle | 0 – 135 Deg |
|---|
| Power | Manual |
|---|
| Length | 120" |
|---|
| Min Reverse Bend | 0.625" |
|---|
