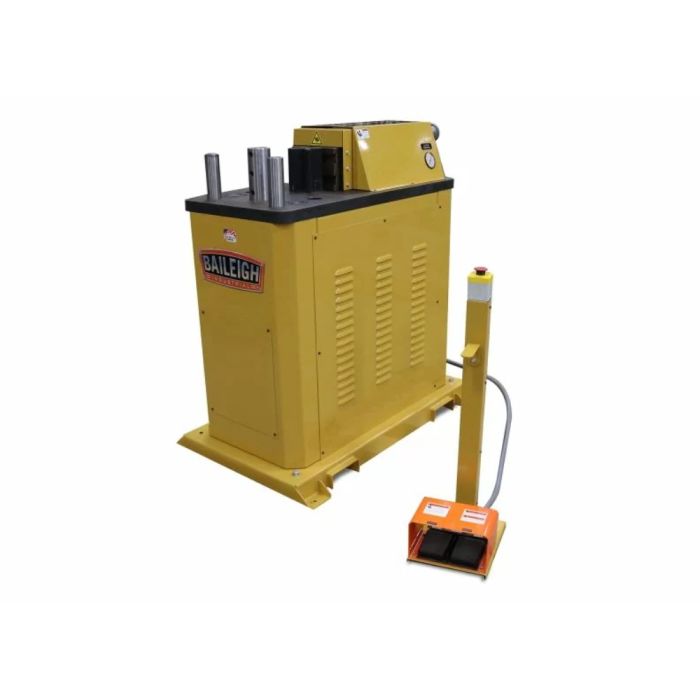

Baileigh Industrial BA9-HPB20 HPB-20, 220V 3Ph 20 Ton Horizontal Bending Ships direct from manufacturer
This Baileigh 20-ton press brake machine can bend, punch, and shear with the right tooling. You can easily make small parts like flanges and brackets because the material lies on a flat surface.
Recommended for:
Full industrial production, including shipbuilding yards, boiler manufacturers, and nuclear applications.
Making parts that are thick, but not wide (die size is limited).
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907434412 Features 20 tons of pressure 12" stroke length 220V 3-phase power 39" working table height 5 hp motor produces up to 20 tons of pressure. 12” stroke length. Horizontal bending press machine runs on 220-volt 3-phase power. Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex. Designed for simple operation. In 15 minutes, anyone could learn to run it. Control the bending stroke with the foot pedal, so your hands are free to guide the material. Machined table, 39” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up Quick-release tooling system makes changes fast and simple. Includes Multi-V tooling (V-opening die and V post). Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary. Horsepower 5 HP Warranty 1 Year
Type Horizontal Bending Press Cylinder 4" Fixture Holes 1 @ 3" Dia. / 3 @ 2" Dia. Hydraulics (PSI) 2,750 PSI Input Power 220 V / 1-Ph Minimum Return Speed (In./Sec) .78" / sec. Model Number HPB-20 Punch Open Height 6" Rating (Tons) 20 Tons Stroke 12" Work Height 39"
