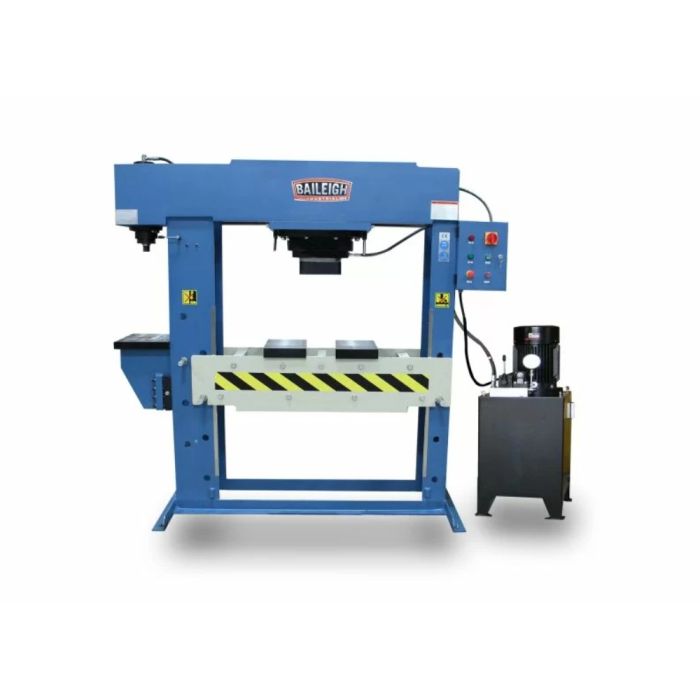

Baileigh Industrial BA9-1019291 HSP-200M-C, 220V 3Ph 200/20 Ton Two Station Hydraulic Press

SKU
BA9-1019291
$39,929.00
Ships direct from manufacturer?

Our most powerful Hydraulic Shop Press, the HSP-200M-C can deliver 200 tons of pressure on the main ram, but also includes a smaller 20 ton hydraulic arbor press attachment. A .375" cast steel framework makes this press one of the best values on the market.

Questions? Call us at 1-920-654-5815 and talk to a Baileigh expert.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC00731325479713
Features
  • 200-ton capacity
  • 20-ton secondary hydraulic arbor press included
  • 220V 3-phase power
  • 47" working width
  • Unique two station design
  • 200-ton capacity on main press
  • 20-ton capacity on side press
  • 48" working width
  • 11"-diameter cylinder with 11.8" stroke
  • 10 hp motor runs on 220-volt 3-phase power
  • Stand-alone hydraulic system with a piston-style pump
  • Cylinder can move left and right within the frame, ideal for off-center projects
  • Pressure gauge comes standard
  • Includes a 2-piece V-block set
Warranty1 Year
TypeHydraulic Press
Approx. Pressure (Tons)200 Ton and 20 Ton
Cylinder MovableNo
Model NumberHSP-200M-C
Weight (Lbs.)6910 lbs
