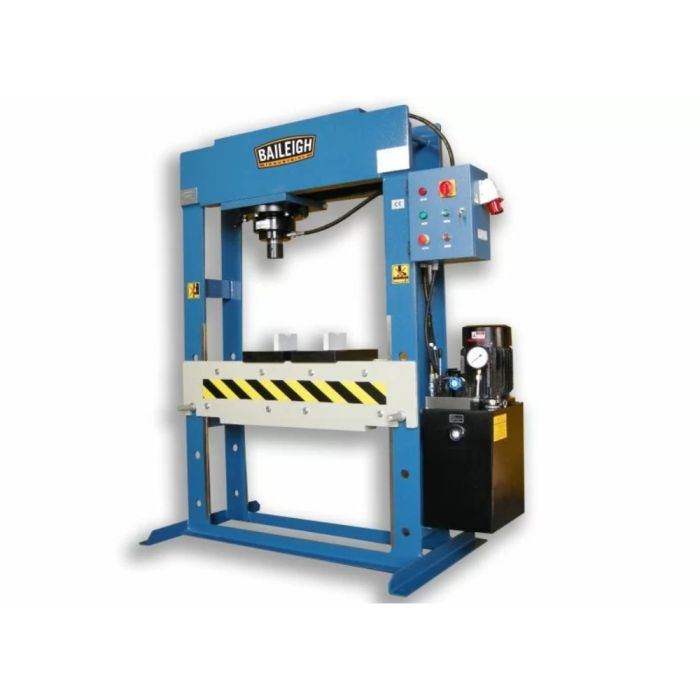

Baileigh Industrial BA9-1012740A HSP-60M, 220V 3Ph 60 Ton Hydraulic H-Frame Press Ships direct from manufacturer
If you’ve outgrown your pneumatic press, our HSP-60M 60-ton hydraulic press gives you the extra power of a 5hp motor and the rigid accuracy of a fully-welded heavy steel plate frame.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 19907676386 Features 60-ton hydraulic press 220V 3-phase power 41.25 " working width 11.5" stroke 60-ton capacity. 41.25" working width. 7.5" cylinder moves left and right within the frame, ideal for off-center parts. Controlled by a piston-style hydraulic pump. Includes 2-piece V-block set. Pressure gauge comes standard. Welded steel structure withstands the machine’s full force without flexing. Rear safety cage included (not shown in pictures) Baileigh covers this 60-ton hydraulic workshop press with a 1-year parts warranty as well as lifetime technical support by phone. Speed (RPM) 1,440 RPM Warranty 1 Year
Type Hydraulic Press Cylinder Movable Yes Distance From Table To Ram 10.04" (Min.) - 39.57" (Max.) Minimum Return Speed (In./Sec) 0.303" / sec. Model Number HSP-60M Piston Diameter 3"
