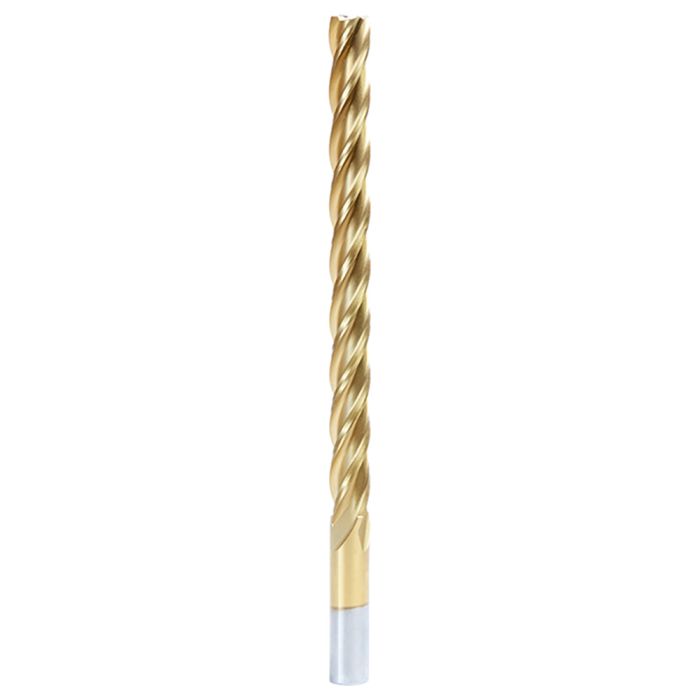

Amana Tool HSS1214 1/2" HSS Foam Cutting End Mill Extended Reach Router Bit

SKU
HSS1214
$175.00
Ships direct from manufacturer?

CNC foam tools let you achieve depth and precision for thick foam carving applications. Ensure your foam projects are milled with accuracy and high detail, deep cuts in thick materials in fewer passes. For thick material up-cut chip removal.

*Expanded polypropylene (EPP) is a foam form of polypropylene.

**Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.

Titanium Nitride (TiN) coating increases strength and durability. TiN coated router bits harden and protect the cutting edges in addition helps smooth the flutes for improved chip ejection.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
Features
  • Great for deep profiling
Flutes4
MaterialHigh Speed Steel
Type Router Bit
Direction Up-Cut
Diameter (D) 1/2"
Cutting Height (B) 6"
Shank Diameter (d) 1/2"
Overall Length (L) 8"
Flute Type Spiral
Maximum Speed (RPM) 6,000 RPM
End Mill Type Extended Reach
End Cut Type Square End
Coating Titanium Nitride (TiN)
Suitable for Use with CNC Routers and CNC Router Systems
Application Acrylonitrile-Butadiene-Styrene (ABS), Aluminum Alloys, Crosslinked Polyethylene Foam (XLPE), Ethafoam**, Ethylene-vinyl Acetate Foam (EVA), Expanded Polypropylene (EPP)*, Expanded Polystyrene (EPS), Extruded Polystyrene Foam (XPS), Flexible Polyurethane Foam (FPF), Foam, Fomex, Polycarbonate (Lexan), Palfoam, Plastics, Polyethylene Foam**, Polylam**, Polyurethane Foam, Wood
Feed Rate / Chip Load Per Tooth (Foam) 120" - 170" / 0.005" - 0.007"
Feed Rate / Chip Load Per Tooth (Aluminum Alloys, Plastics, Wood) 50" / 0.002"
