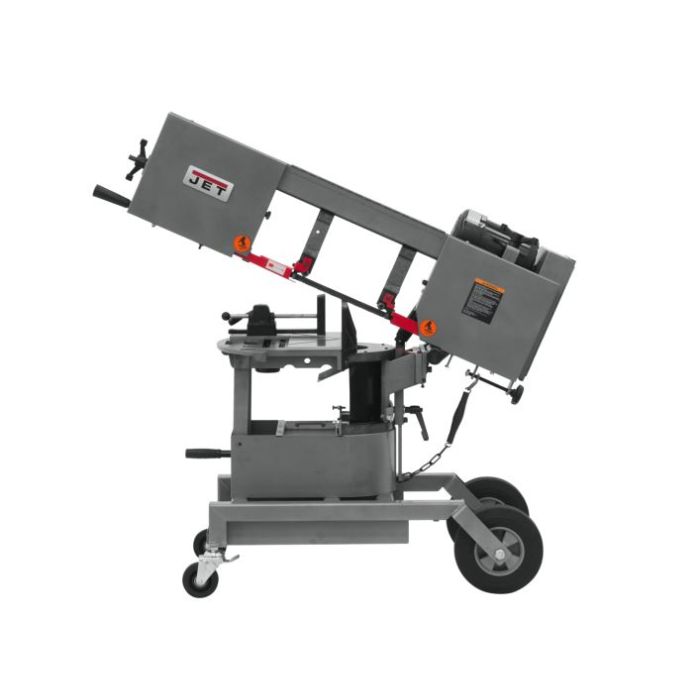

Jet 424463 HVBS-10-DMW Dual Mitering Portable Band Saw, 1 HP, 115/230 V

SKU

424463

$4,669.00

Ships direct from manufacturer

Band Saw, Dual Mitering, Portable, 11-23/32 inch Wheel Diameter, 34.5 inch Width, 72 inch Length, 46 inch Height, 29 inch Height Table, 1 inch Blade Width, 120 inch Blade Length, 0.035 inch Blade Thickness, 5/8 Teeth, 13 inch Width, 10 inch Depth Cutting Capacity, Cast Iron Blade Wheel/Pulley, Steel Bow and Stand, Rubber Tire, Cast Iron and Aluminum Table Material, 115/230 V Voltage, 14/7 A FLA Current, 1 HP Power, 1 Phase, 64/132/247 SFPM Blade, 1720 RPM Motor Speed, 10 inch Round @ 90 Deg, 6-1/2 inch Round @ 45 Deg, 8 inch x 9 inch Rectangle @ 90 Deg, 8 inch x 5-1/2 inch Rectangle @ 45 Deg Table/Blade Tilt, +/-45 Deg Head Movement Miter Gauge Positive Stops, 2 Years Warranty, Includes Blade Guarding, Built-In Protractor, Adjustable Vise, Large 16 inch x 10 inch Vertical Cutting Table, Removeable Chip Tray, Roller Stand, 558 lb Weight, CSA/cUS Certified, For Quick Angle Cuts

Notify me when the price drops

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description
Features/Specifications
Reviews

Product Description

The JET dual-mitering band saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position and wheels for moving around the shop floor.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
Features	Built in self propelled blade brush prevents chip build up in blade guides Head pressure controlled by a hydraulic cylinder Power switch with safety key prevents accidental start up CSA/CUS: Following strict guidelines and electrical requirements, this JET saw is CSA/CUS certifield Blade is fully guarded for operator safety Automatic shut off switch stops the sawing process Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials Head dual miters both left and right for quick angle cuts Protractor for fast and accurate angle cutting Converts from horizontal to vertical position with ease Large 16 inch x 10 inch vertical cutting table Wheels standard for ease of movement on any shop floor Standard Equipment Blade guarding Built-in protractor Adjustable vise Removeable chip tray Roller stand
Includes	Blade Guarding, Built-In Protractor, Adjustable Vise, Large 16 inch x 10 inch Vertical Cutting Table, Removeable Chip Tray, Roller Stand
PDFs	424460_OperatorManual.pdf
Application	For Quick Angle Cuts
Horsepower	1 HP
Stationary type	Dual Mitering, Portable
Warranty	2-Year

Vertical Cutting Capacity	12" x 8"
Round at 45 Degrees	6-1/2"
Round at 90 Degrees	10"
Rectangle at 45 Degrees	8" x 5-1/2"
Rectangle at 90 Degrees	8" x 9"
Head Movement	+/- 45°
Blade Size	1" x 0.035" x 120"
Blade Wheel Diameter	11-23/32"
Blade Speed	64, 132, 247 SFPM
Motor	1HP, 115 V, Single Phase
Voltage	115 V
Maximum Vise Opening	10"
Table Height	30-13/32"
Overall Dimensions	72" x 34.5" x 46"
