Jet JT9-577842 IBDG-248VS, Variable Speed Industrial 2" x 48" Belt and 9" Disc Grinder

SKU
JT9-577842
$1,099.00
Ships direct from manufacturer?

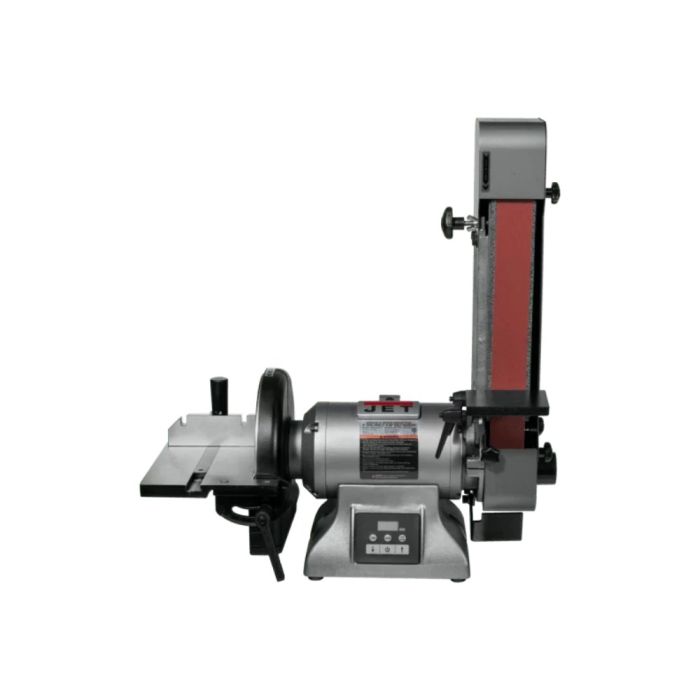

The Variable Speed IBDG-248VS Combination 2" x 48" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The Variable Speed IBDG-248VS includes a digital readout that allows operators to accurately monitor the RPMS and SFPM. The electric motor brake quickly stops the wheels from 3,600 RPMs to 0 in less than 20 seconds. CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325806854
Features
  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.
  • VS models include Break resistor which allows for rapid stopping of belt and disc movement.
Horsepower1 HP
TypeBelt and Disc Grinder
Amperage Draw @ 115V 1Ph7 A
Belt Grit80
Belt Size (W x L)2" x 48"
Belt Speed (SFPM)1178 - 4712 SFPM
Disc Diameter9"
Disc Speed (RPM)900 - 3600 RPM
Dust Port Size2"
Model NumberIBDG-248VS
Weight74 lbs
Overall Dimensions (L x W x H) (sanding bracket is parallel)23-1/2" x 26-3/4" x 12-1/4"
Overall Dimensions (L x W x H) (sanding bracket is vertical)23-1/2" x15" x 25-7/8"
Style7
Warranty2 Year
