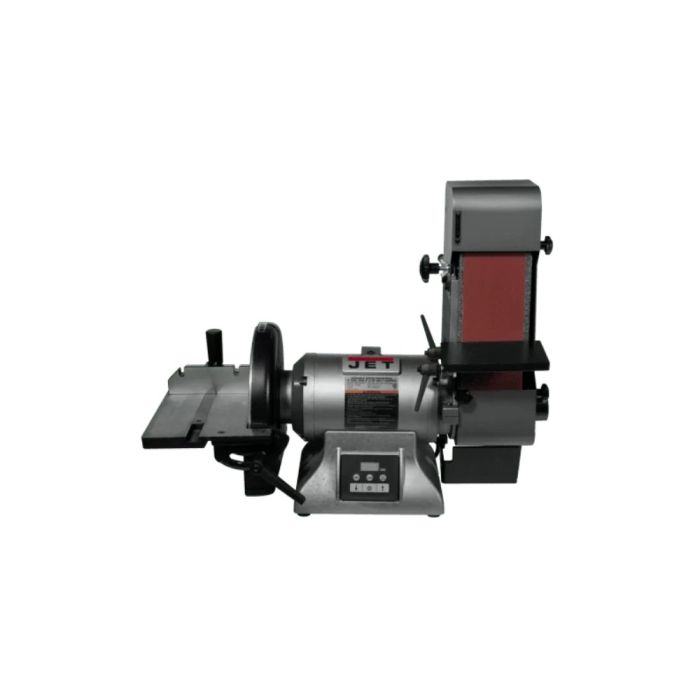

Jet JT9-577634 IBDG-436VS, Variable Speed Industrial 4" x 36" Belt and 9" Disc Grinder

SKU
JT9-577634
$1,231.00
Ships direct from manufacturer ?

The Variable Speed IBDG-436VS Combination 4" x 36" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The Variable Speed IBDG-436VS includes a digital readout that allows operators to accurately monitor the RPMS and SFPM. The electric motor brake quickly stops the wheels from 3,600 RPMs to 0 in less than 20 seconds. CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325806878
Features
  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.
  • VS models include Break resistor which allows for rapid stopping of belt and disc movement.
Horsepower1 HP
TypeBelt and Disc Grinder
Belt Grit80
Belt Size (W x L)4" x 36"
Disc Diameter9"
Dust Port Size2"
Model NumberIBDG-436VS
Weight73 lbs
Overall Dimensions (L x W x H) (sanding bracket is parallel)25-3/4" x 21-3/4" x 11-3/4"
Overall Dimensions (L x W x H) (sanding bracket is vertical)25-3/8" x 21-3/4" x 20-3/4"
Shaft Diameter7"
Warranty2 Year
