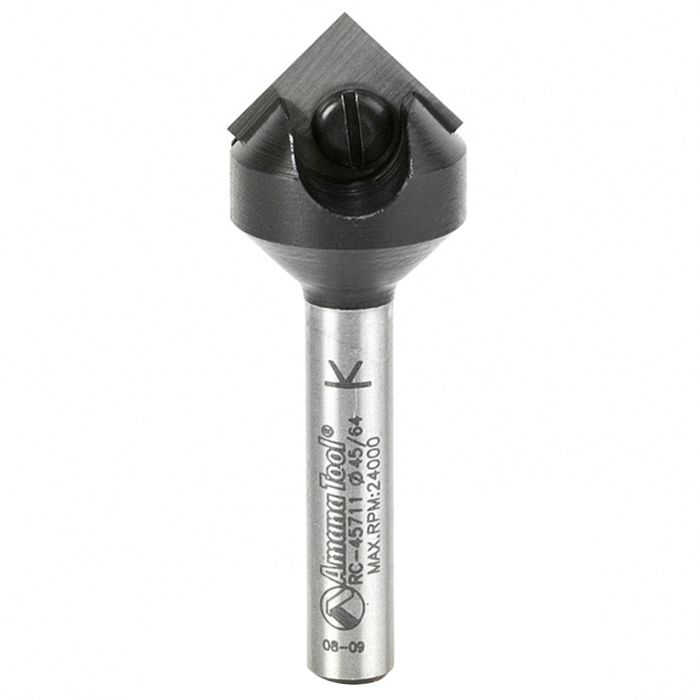

Amana Tool RC-45711 11/16" In-Tech Insert Carbide V Groove Router Bit Ships direct from manufacturer
These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide tipped bits, router bit dimensions, cutting quality and accuracy remain constant during the life of the tool. Each insert knife can be rotated to four new points.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Amana Tool Corp. Condition New UPC 73868557000 Features Benefits of the In-Tech Series Include:
Cutting accuracy remains constant during the life of the knife
Priced comparably to brazed router bits with at least 4 times longer tool life
Superior cutting quality
No resharpening costs
Harder grade tungsten carbide
Rotate insert for a new cutting edge
Flutes 1 Material Carbide
Type
Router Bit
Angle (a°)
90 Deg
Angle (a1°)
45 Deg
Diameter (D)
11/16"
Cutting Height (B)
21/64"
Shank Diameter (d)
1/4"
Overall Length (L)
1 61/64"
Style
V-Groove/Signmaking
Replacement Insert Knives
AMA-12 (12 x 12 x 1.5 mm)
Number of Knives
1
Cutting Edges
4
Maximum Speed (RPM)
24,000 RPM
RPM / Feed Rate IPM / Chip Load Per Tooth / Ramp Down IPM (Plastic)
11,000 / 50" / 0.0045" / 25"
RPM / Feed Rate IPM / Chip Load Per Tooth / Ramp Down IPM (Aluminum (Engraving))
16,000 / 12" / 0.0007" / 6"
RPM / Feed Rate IPM / Chip Load Per Tooth / Ramp Down IPM (Wood)
18,000 / 40" / 0.0022" / 20"
Application
For Routing Aluminum, Brass, Bronze, Copper, Gold, Silver and Carbon Fiber (Engraving Only), MDF, Chipboard, Softwood, Hardwood, Plastic
