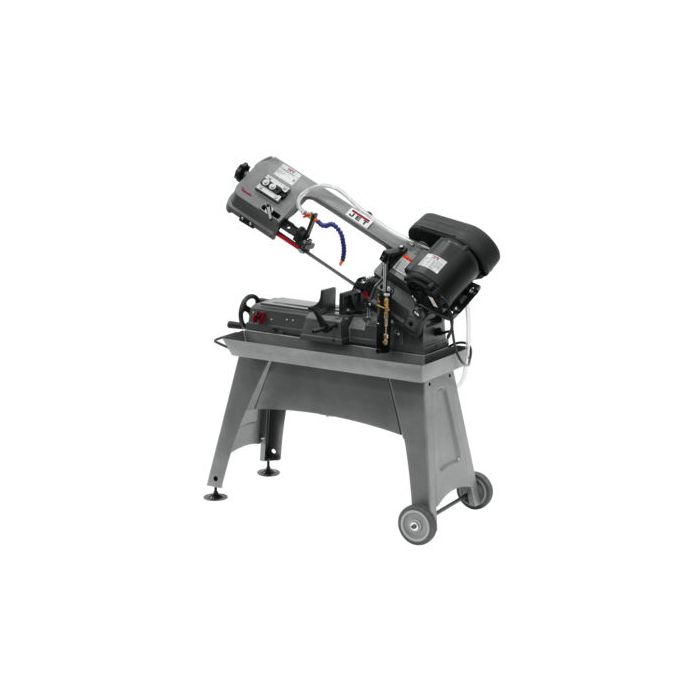

JET 414453 J-3230 5" X 8" Horizontal BandSaw, Wet, 1/2 HP 115 V 1 Ph
Ships direct from manufacturer
Usually ships in 24-48 hours
The Jet 414453 J-3230 features an adjustable hydraulic feed system. Adjustable ball bearing guides. Heat treated steel worm gear and bronze drive gear.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer |
Jet |
Condition |
New |
UPC |
66275609095 |
Features |
-
Adjustable hydraulic feed system
-
Adjustable ball bearing guides
-
Heat treated steel worm gear and bronze drive gear
-
Automatic shut off at end of cut
-
Handles and wheels for convenient moving to various work stations
-
Eccentric shaft and ball bearing guides
-
Standard Equipment: 1 gallon capacity coolant system with hose, flexible nozzle, shut off valve, tank and baffle
-
1/2" carbon steel blade
-
Adjustable material stop
|
Horsepower |
0.5 HP |
Stationary type |
Horizontal |
Warranty |
2 Year Warranty |
Base/ 3 Legs Area Required (in.) | 37 x 16 x 37 |
---|
Bed Height (in.) | 23-1/2 |
---|
Blade Length (in.) | 68-1/2 |
---|
Blade Size (in.) | 1/2 X .025 X 68-1/2 |
---|
Blade Speeds (SFPM) | 85, 125, 200 |
---|
Height | 0 inch |
---|
Length | 0 inch |
---|
Model Number | J-3230 |
---|
Motor | 1/2 HP, 115V 1 Ph, 1725 RPM |
---|
Net Weight | 160 pound |
---|
Overall Dimensions | 37 X 16 X 37 |
---|
Part Number | 414453 |
---|
Rectangle at 45 (in.) | 4-1/2 X 5 |
---|
Rectangle at 90 Degrees (in.) | 7-1/2 X 5 |
---|
Round at 45 Degrees (in.) | 4-1/2 |
---|
Round at 90 Degrees (in.) | 5 |
---|
Square at 90 Degrees (in.) | 5 |
---|
Web Description | J-3230 5 X 8 HORIZONAL BANDSAW WET 1/2 HP, 115V, 1Ph |
---|
Width | 0 inch |
---|
