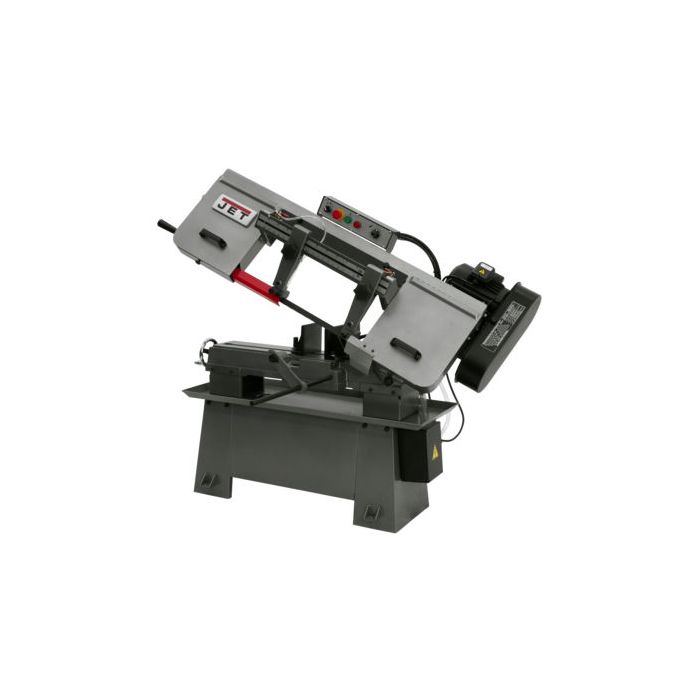

The Jet 414450 / J-7015 is a 8 X 13 Inch 1.5HP, 115V, 1ph Horizontal Bandsaw. Combination oil bath, gear reduction power train, along with precision blade guides and a hydraulic feed system delivers consistent, accurate cuts and longer blade life.
Bandsaw, Horizontal, Jet, 62 1/2 Inch Length, 22 7/16 Inch Width, 48 7/16 Inch Height, 114 1/2 Inch Length X 1 Inch Width X 0.035 Inch Thick Blade, 82, 132, 170, 235 SFPM Speed, 1 1/2 HP, 115/230 V, 1 Ph, Prewired 115V Motor, 27 1/2 Inch Bed Height, 45 Degrees Vise Swivels, 11 5/8 Inch Blade Wheel Diameter, 551 lb
WARNING: Proposition 65 Warning for California Residents View Details
Heavy-duty, rigid steel and cast iron construction of the head
Base provides full blade support and elimnates vibration and deflection
Combination oil bath, gear reduction power train, along with precision blade guides and a hydraulic feed system delivers consistent, accurate cuts and longer blade life
Conveniently located control panel, and an easily accessible coolant system
Rapid acting vise (allows miter cutting to 45°)
Coolant system
1 Inch Bi-metal blade
Adjustable material stop
Horsepower
1.5 HP
Warranty
2 Year Warranty
Bed Height (in.)
27-1/2
Blade Length (in.)
114.5
Blade Size (in.)
1 x .035 x 114.5
Blade Speeds (SFPM)
82, 132, 170, 235
Height
48.4 inch
Length
62.5 inch
Model Number
J-7015
Motor
1-1/2HP, 115/230V, 1Ph, Prewired 115V
Net Weight
551 pound
Part Number
414450
Rectangle at 45 Degrees (in.)
9 x 8
Rectangle at 90 Degrees (in.)
9 x 13
Round at 45 Degrees (in.)
9
Round at 90 Degrees (in.)
9
Square at 90 Degrees (in.)
8-1/2
Vise Swivels (deg.)
45°
Web Description
J-7015 8 x 13" HORIZONTAL BANDSAW, 1.5HP, 115V, 1ph
