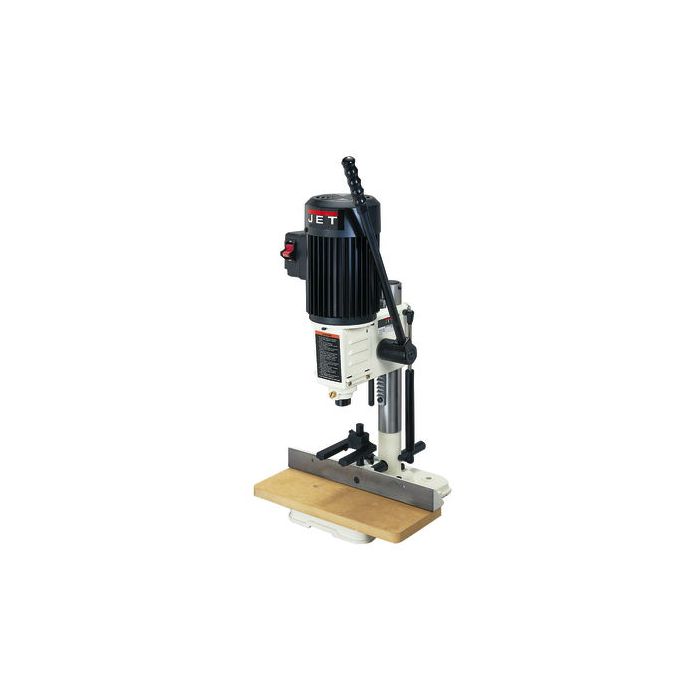

JET 708580 JBM-5 1/2 HP Benchtop Mortise Machine, 1/2" Capacity, 1725 RPM
THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING.
This conveniently sized, but powerful machine can be used on a bench or an independent stand. Heavy duty construction provide the durability, consistency and stability needed to produce quality results every time.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 66275513953 Features Heavy-duty cast iron and steel construction provides durability and stability during use Dependable rack-and-pinion head adjustment gives you accurate position control Long, multi-position mortising handle let you reposition the feed handle for easier operation and optimum handle position Three-jaw drill chuck keeps a positive grip on mortising bits with up to 3/8" diameter shanks Two hinged side doors allow easy access to the drill chuck Quick adjust depth stop for uniform mortise depths Column is reversible for mortising larger stock Removable On/Off toggle switch prevents accidental or unauthorized use of the tool Powerful 1/2HP motor provides consistently smooth performance PDFs Operating Instructions and Parts Manual
Horsepower 0.5 HP Motor Phase 1 Ph Stationary type Benchtop Warranty 5-Year
Chisel Center to Fence 3-1/2" Chisel Shank Capacity 5/8", 3/4" Chisel Stroke 4-3/4" Bushing Size 5/8" & 3/4" Chuck Size 3/8" Spindle Speed (RPM) 1725 RPM Under Hold-Down 4" Fence Size (L x H) 1-9/16" x 13-3/4" Base Size 7-5/8" x 12-3/16" Motor Voltage 115 V Prewired Voltage 115 V Motor Amps 6 Amps Table size 13-1/2" x 6" Overall Height Assembled Maximum 30"; Minimum 21" Head and Base Cast Iron and Steel Table MDF Column Steel Cycle 60 Hz Motor Speed 1750 RPM Motor Type TEFC Net Weight 44 lbs
