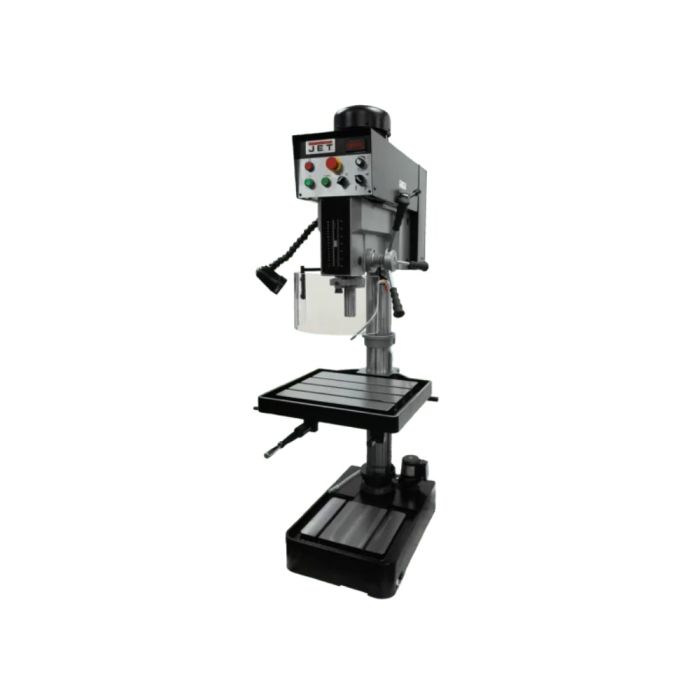

Jet JT9-354220 JDP-20EVS-110, 20" 115V Drill Press Ships direct from manufacturer
JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325503876 Features Coolant system is optional #5512104 CSA/CUS Certified Front Mounted LED Spindle RPM Readout Front mounted positive control depth stop Heavy-duty steel column for increased precision and rigidity High torque at all speeds both forward and reverse Large Hand Grips designed with the users comfort in mind Large precision ground T-Slot production table for easy set ups Latest AC Inverter Variable Speed Technology Spindle is supported by high quality ball bearings Horsepower 2 HP Motor Phase 1 Ph Warranty 2 Years
Type Drill Press Base Dimensions 27" x 19" Column Diameter 4-1/2" Distance Column to Spindle 10-7/16" Drilling Capacity Cast Iron 1-1/2" Drilling Capacity Mild Steel 1-3/8" Drills to Center of Circle 20" Inverter Type 115 V, Single Phase Model Number JDP-20EVS-110 Overall Dimensions (L x W x H) 38.18" x 27.16" x 79.52" Range of Spindle Speeds (RPM) 130 - 2000 RPM Spindle Distance to Base 44-1/2" Spindle Distance to Table (Maximum) 30-1/4" Spindle Taper (In. x TPI) MT-3 Spindle Travel 6" Style Variable Speed Table Size (L x W) 22" x 18-3/4" Table Travel 20" T-Slot Centers 7-7/16" Weight 792 lbs Work Table Weight Capacity 154 lbs Motor Voltage 115 V
