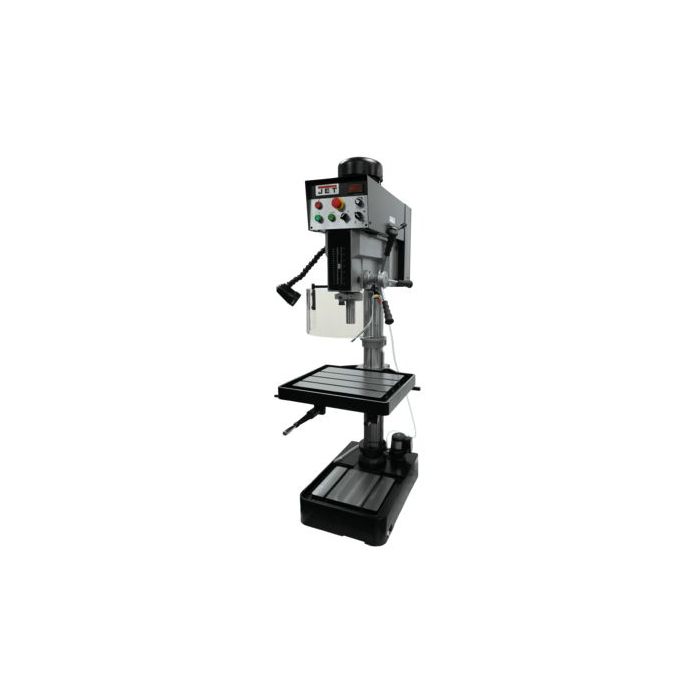

Jet 354225 JDP-20EVST-230 20 Variable Speed Drill Press, 2 HP, 230V, 3 Phase

SKU

354225

$6,399.00

Ships direct from manufacturer

Drill Press, Variable Speed, 4-1/2 inch Column Diameter, 38.18 inch Length, 27.16 inch Width, 79.52 inch Height, 20 inch Drills to Center of Circle, 1-1/2 inch Cast Iron, 1-3/8 inch Mild Steel Drilling Capacity, 7/8 inch Cast Iron, 3/4 inch Mild Steel Tapping Capacity, 6 inch Spindle Travel, 20 inch Table Travel, 10-7/16 inch Distance Column to Spindle, 44-1/2 inch Spindle Distance to Base, 30-1/4 inch Spindle Distance to Table, 18-3/4 inch Width, 22 inch Length Table, No 3, 5/8 inch T-Slots Number, 7-7/16 inch T-Slot Center, 19 inch Width, 27 inch Length Base, No 2, 5/8 inch Base Slot, Steel Column Material, 2 HP, 230 V, 3 Phase Motor Specification, 65 - 540/245 - 2000 RPM Speed, MT-3 Spindle Taper, Variable Spindle Speed, 792 lb Weight, CSA/cUS Certified

Notify me when the price drops

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description
Features/Specifications
Reviews

Product Description

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Tapping capability, an emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
Features	Heavy-duty steel column for increased precision and rigidity Heavy Duty casted head for more accuracy and rigidity Large Precision Ground T-slot Production Table for easy set ups Latest AC Inverter Variable Speed Technology CSA Coolant System Spindle is supported by high quality ball bearings CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified LED Machine Lamp Spindle Guard Emergency Stop Spindle is supported by high quality ball bearings Variable Spindle Speeds from 65 - 2,000 RPM's High Torque at all speeds both forward and reverse Continuous Speed Adjustment while in operation Front Mounted LED Spindle RPM Readout Forward and Reverse for Tapping Front Mounted Postitive Control Depth Stop Large Hand Grips designed with the Users comfort in mind
PDFs	354225_InstructionManual.pdf
Stationary type	Variable Speed
Warranty	2-Year

Drills to Center of Circle (in)	20"
Drilling Capacity Cast Iron	1-1/2"
Drilling Capacity Mild Steel	1-3/8"
Tapping Capacity Cast Iron	7/8"
Tapping Capacity Mild Steel	3/4"
Distance Column to Spindle	10-7/16"
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)65-540 /245- 2,000	65-540 /245- 2,000 RPM
Column Diameter	4-1/2"
Spindle Taper (In. x TPI)	MT-3 (In. x TPI)
Spindle Travel	6"
Spindle Distance to Base	44-1/2"
Spindle Distance to Table (Max.)	30-1/4"
Table Travel	20"
Table T-Slots, Number & Size	2 Slots for 5/8" bolts
T-Slots Number and Size	3" & 5/8"
T-Slot Centers	7-7/16"
Table Size (L x W)	22" x 18-3/4"
Work Table Weight Capacity (Lbs.)	154 lbs
Base Dimensions	27" x 19"
Base Slots Number & Size	2 and 5/8"
Motor	2 HP, 230 V 3ph
Overall Dimensions (L x W x H)	38.18" x27.16" x 79.52"
Weight (Lbs.)	792 lbs
