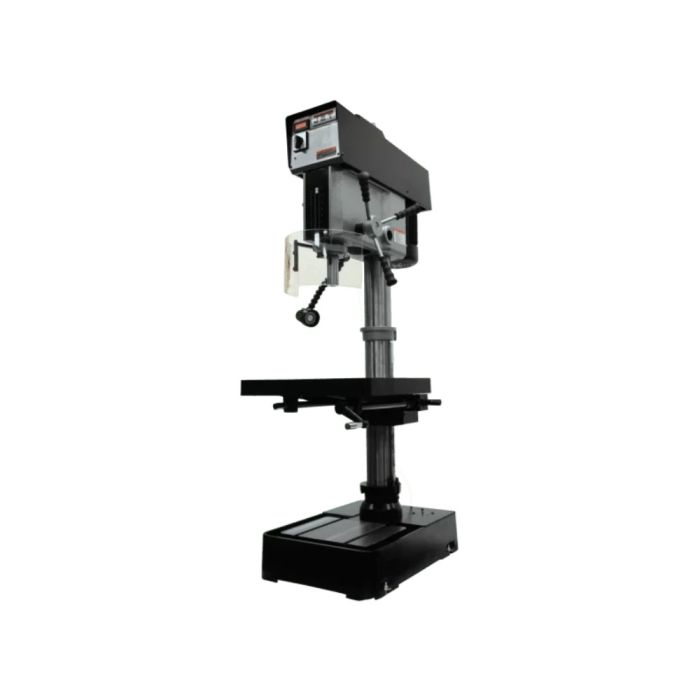

Jet JT9-354231-4 JDP-20VS-3, 20" 460V 3Ph Drill Press Ships direct from manufacturer
Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325073539 Features CSA/CUS Certified Front Mounted LED Spindle RPM Readout Front mounted positive control depth stop Head is massively constructed for more accuracy and rigidity & heavy duty cast iron design Drill Chuck not included Large Hand Grips designed with the users comfort in mind Large precision ground T-Slot production table for easy set ups Massive 3" quill diameter Table rotates 360° around the column Variable spindle speeds Horsepower 2 HP Motor Phase 3 Ph Warranty 2 Years
Type Drill Press Base Dimensions 27" x 19" Column Diameter 4-1/2" Drilling Capacity Cast Iron 1-1/2" Drilling Capacity Mild Steel 1-3/8" Drills to Center of Circle 20" Model Number JDP-20VS-3 Overall Dimensions (L x W x H) 38.18 " x 27.16 " x 79.52" Range of Spindle Speeds (RPM) 130 - 2000 RPM Spindle Distance to Base 44-1/2" Spindle Distance to Table (Maximum) 30-1/4" Spindle Taper (In. x TPI) MT-3 Spindle Travel 6" Style Variable Speed Table Size (L x W) 22" x 18-3/4" Table Travel 20" T-Slot Centers 7-7/16" Weight 780 lbs Work Table Weight Capacity 154 lbs Motor Voltage 230/460 V
