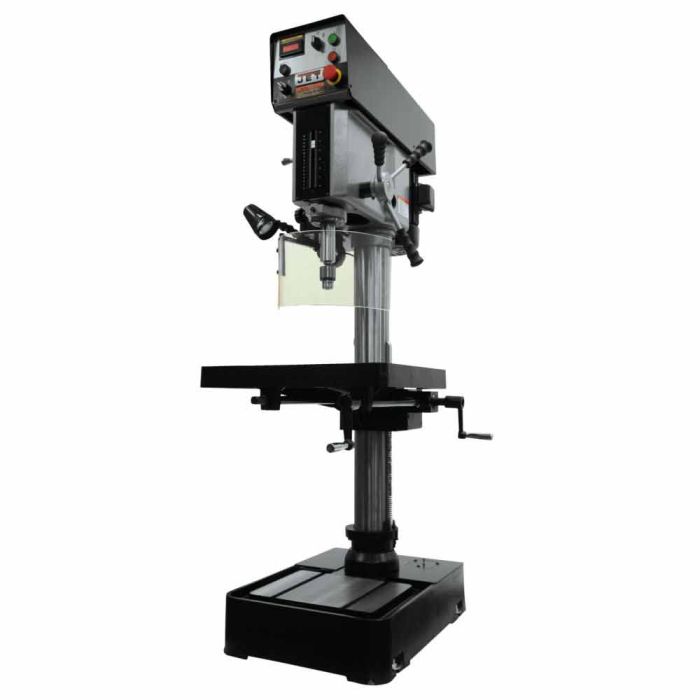

Jet 354240 JDP-20VST 20" Variable Speed Drill Press, 2 HP, 230V, 3 Phase

SKU

JT9-354240

$6,984.00

Ships direct from manufacturer

Drill Press, Variable Speed, 4-1/2 inch Column Diameter, 38.18 inch Length, 27.16 inch Width, 79.52 inch Height, 20 inch Drills to Center of Circle, 1-1/2 inch Cast Iron, 1-3/8 inch Mild Steel Drilling Capacity, 6 inch Spindle Travel, 20 inch Table Travel, 10-7/16 inch Distance Column to Spindle, 44-1/2 inch Spindle Distance to Base, 30-1/4 inch Spindle Distance to Table, 18-3/4 inch Width, 22 inch Length Table, No 3, 5/8 inch T-Slots Number, 7-7/16 inch T-Slot Center, 19 inch Width, 27 inch Length Base, No 2, 5/8 inch Base Slot, Steel Column, Cast Iron Base Material, 2 HP, 230 V, 3 Phase Motor Specification, 150 - 2000 RPM Speed, MT-3 Spindle Taper, Variable Spindle Speed, 780 lb Weight, CSA/cUS Certified

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Solid design and construction deliver precision operation and control. JET 20 inch variable speed drill presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That's all on top of a steel column and a heavy-duty cast iron base.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Jet
Condition	New
Features	Steel column Heavy duty casted iron design Head is massively constructed for more accuracy and rigidity Large precision ground T-slot production table for easy set ups Massive 3 inch quill diameter CSA coolant system CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified LED machine lamp Spindle guard Variable spindle speeds from 65 - 2,000 RPM Front mounted LED spindle RPM readout Front mounted postitive control depth stop Table rotates 360° around the column Machine T-slotted base Large hand grips designed with the users comfort in mind Standard Equipment Spindle safety guard
PDFs	354230_InstructionManual.pdf
Stationary type	Variable Speed
Warranty	2-Year

Drills to Center of Circle	20"
Drilling Capacity Cast Iron	1-1/2"
Drilling Capacity Mild Steel	1-3/8"
Tapping Capacity Cast Iron	3/4"
Tapping Capacity Mild Steel	5/8"
Distance Column to Spindle	10-7/16"
Number of Spindle Speeds	Variable
Range of Spindle Speeds	150 - 2,000 RPM
Column Diameter	4-1/2"
Spindle Taper	MT-3
Spindle Travel	6"
Spindle Distance to Base	44-1/2"
Spindle Distance to Table (Max.)	30-1/4"
Table Travel	20"
T-Slots Number and Size	3" & 5/8"
T-Slot Centers	7-7/16"
Table Size (L x W)	22" x 18-3/4"
Work Table Weight Capacity	154 lbs
Base Dimensions	27" x 19"
Base Slots Number & Size	2 & 5/8"
Motor	2 HP, 230 V, 3ph
Overall Dimensions (L x W x H)	38.18" x 27.16" x 79.52"
