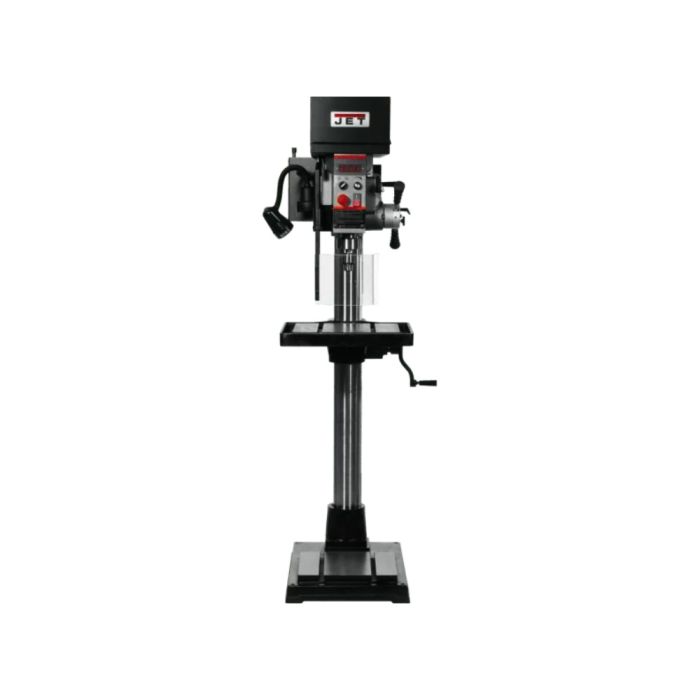

Jet JT9-354251 JDPE-20EVSC-PDF, 20" Clutch EVS Drill Press with Power Downfeed

SKU
JT9-354251
$5,829.00
Ships direct from manufacturer?

The 20'' JET JDPE-20EVS-PDF Drill Press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support. Engineered to maximize output, the 20’’ EVS Drill Press includes a three-speed power down feed for heavy drilling applications and capable of running various spindle speeds from 50 to 2000 RPMs. CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325789621
Features
  • Casted head for more accuracy and rigidity
  • Emergency stop allows for immediate shut off
  • Forward and reverse switch for instant tapping mode
  • Front Mounted LED Spindle RPM Readout
  • Heavy casted column prevents failures prolonging the life of the machine
  • LED machine lamp delivers extra light for more precise drilling
  • Speed changes using a clutch system
  • Spindle guard protects user from flying debris
  • Spindle power down feed system
Horsepower1.5 HP
Motor Phase3 Ph
Warranty2 Years
TypeDrill Press
Base Dimensions17.7" x 25-1/2"
Base Work Table14-3/16" x 13"
Column Diameter4"
Distance Column to Spindle26-1/2"
Drilling Capacity Cast Iron1-1/4"
Drilling Capacity Mild Steel1-1/8"
Drills to Center of Circle10"
Inverter TypeJET Exclusive
Inverter Type / Power Source2HP/115V/1PH
Model NumberJDPE-20EVSC-PDF
Overall Dimensions (L x W x H)32-3/5" x 22-2/3" x 70-25/64"
Quill Diameter2.16"
Spindle Distance to Base48-1/4"
Spindle Distance to Table (Maximum)46.85"
Spindle Taper (In. x TPI)MT-3
Spindle Travel Auto4-1/4"
Spindle Travel, Manual5"
Swing19-11/16"
Table Size (L x W)16-1/2" x 18-1/2"
Tapping Capacity Mild Steel5/8"
T-Slots Number and Size2, 1/2"
Motor Voltage230 V
