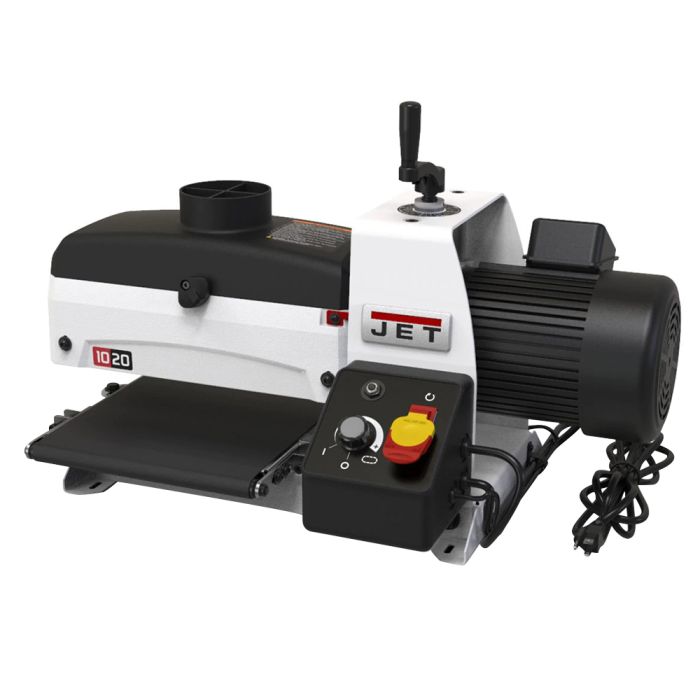

JET 723510 JWDS-1020 115V Benchtop Drum Sander, 1PH
Ships direct from manufacturer
The compact JWDS-1020 benchtop sander from JET packs a powerful 1 HP motor that will sand boards up to 3 inch thick and 20 inch wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer
Jet
Condition
New
Features
Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality
Patented dust hood incorporates an integrated channel that directs dust to a 4 inch collection port
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Infinitely variable-speed control allows the user to choose the optimal feed rate
Open ended design allows for up to 20 inch of sanding capacity with 2 passes
Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
Toolless abrasive take-up fasteners make changing abrasives quick and easy
Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
Control system with integrated circuit breaker protects motor from over heating
Video
VIDEO
Horsepower
1 HP
Motor Phase
1 Ph
Stationary type
Benchtop
Warranty
3 Year
Number of Sanding Drums 1 Drum Speed (RPM) 1,725 RPM Drum Diameter 5" Conveyor Motor Totally Enclosed DC Conveyor Speed (FPM) 0 - 10 FPM Maximum Board Thickness 3" Dust Collection Minimum CFM Required 550 CFM Dust Port Outside Diameter 4" Motor Voltage 115 V Prewired Voltage 115 V Drum Length 10" Minimum Board Length 2 1/4" Minimum Board Thickness 1/32" Maximum Board Width 20"
