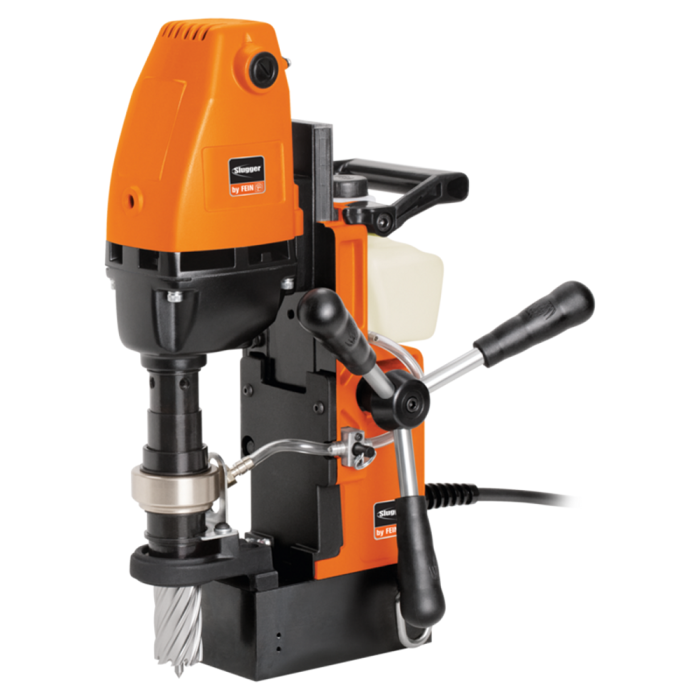

Fein 7-272-52-61-12-4 JHM USA 101 1-1/2" Corded Endurance Magnetic Base Drill

SKU
72725261124
$1,399.95
Ships direct from manufacturer?
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFein Power Tools
ConditionNew
UPC04014586700618
Features
  • For dimensionally-accurate drilling on the construction site
  • Uniform-torque motor for demanding core drilling
  • High concentricity and positive slug ejection due to special bore spindle guides
  • Solid, massive construction in die-cast aluminum for work under difficult conditions
  • Integrated coolant tank
  • Internal motor cable routing
  • Accessory handle for easy carrying of tool
  • Hand feed wheel can be mounted on either side
  • Smart magnet circuitry will not allow motor to start without sufficient magnetic force
Includes
  • Case
  • Coolant Tank
  • Safety Strap
  • Chip Hook
  • 4 x Pilot Pins
  • Allen Key 5 mm
  • Chip Guard
  • Carrying Handle
Video

ApplicationUse of HSS Cutters, Carbide-Tipped Cutter Use, Mag Base Drilling Metal Up to 1 3/8" Diameter, Twist Drills With Drill Chuck, Performing Overhead Work, Installation Work, Workshop Jobs
Electric BrakeNo
Variable speedNo
Type Base Drill
Corded or Cordless Corded
Power Consumption 1,050 W
Power Output 530 W
Full Load Speed (RPM) 330 RPM
No Load Speed (RPM) 480 RPM
HSS Maximum Cutting Diameter 1 1/2"
Maximum Drilling Depth 2"
Maximum Twist Drill Diameter 1/2"
Cutter Holder 3/4"
Stroke 2 9/16"
Magnetic Holding Force 2023 lbs
Magnetic Base Dimension 6" x 4"
Corded Length (with Plug) 12.5'
Weight 31.75 lbs
