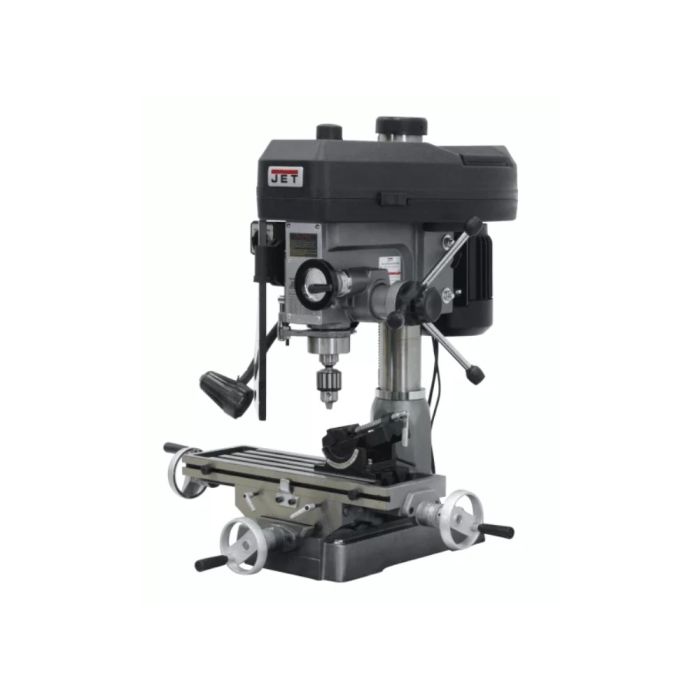

Jet JT9-350132 JMD-15, Mill/Drill with Newall DP500 DRO

SKU
JT9-350132
$5,444.00
Ships direct from manufacturer ?

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325453867
Features
  • 1/2” Drill chuck, chuck arbor
  • 360° head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read external depth gauge
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • One-piece cast iron column for added support
  • UL Listed
Horsepower1 HP
Motor Phase1 Ph
Warranty2 Years
TypeMill/Drill with DP500 DRO
Drilling Capacity1"
Maximum Distance Spindle to Table14-1/2"
Model NumberJMD-15
Number of Spindle Speeds12
Overall Dimensions (L x W x H)38" x 37-1/2" x 42"
Quill Diameter2-7/16"
Range of Spindle Speeds (RPM)110 - 2,580 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel3-1/2"
Table Longitudinal Travel14"
Table Size (L x W)7-1/2" x 23"
T-Slot Centers1-13/16"
T-Slots Number and Size4" and 9/16"
Weight440 lbs
Work Table Weight Capacity350 lbs
Motor Voltage115/230 V
