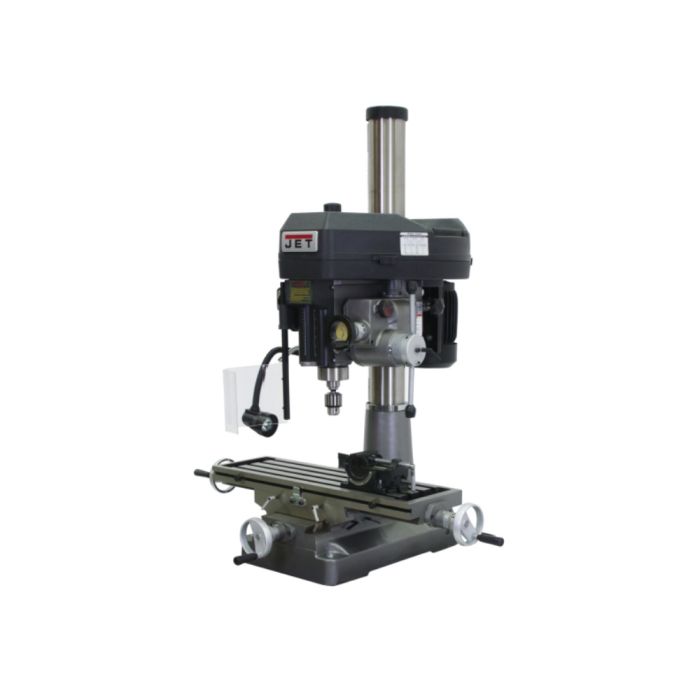

Jet JT9-350140, JMD-18PFN Mill/Drill with X-Axis Table Powerfeed

SKU
JT9-350140
$6,159.00
Ships direct from manufacturer ?

JMD-18PFN Mill/Drill With X-Axis Table Powerfeed.

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325449846
Features
  • 1/2” Drill chuck, chuck arbor
  • 360° head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read internal depth gauge
  • Heavy-duty power downfeed with manual feed (JMD-18PFN)
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • One-piece cast iron column for added support
  • Positive quick-stop knob and easy to read internal depth gauge
  • UL Listed
Horsepower2 HP
Motor Phase1 Ph
Warranty2 Years
TypeMill/Drill
Face Mill Capacity3"
Max Distance Spindle to Table28"
Model NumberJMD-18PFN
VoltagePrewired 115V/230V
Number of Spindle Speeds12
Overall Dimensions (L x W x H)47" x 40" x 51"
Prop 65Cancer and Reproductive Harm
Quill Diameter3
Quill Down Feed Rates (IPR)0.0047, 0.007, 0.001
Range of Spindle Speeds (RPM)150 - 3,000 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
T-Slot Centers1-13/16"
T-Slots Number and Size4" and 5/8"
Table Longitudinal Travel20-1/2"
Table Size (L x W)9-1/2" x 31-3/4"
Work Table Weight Capacity (Lbs.)400 lbs
Weight649.0 lbs
