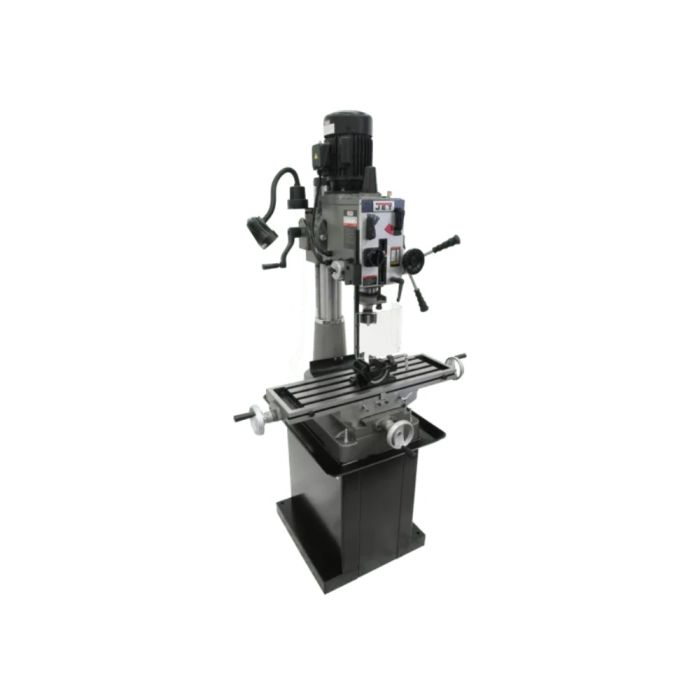

Jet JT9-351140 JMD-40GH, Geared Head Mill/Drill with Newall DP700 DRO
Ships direct from manufacturer
Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.
WARNING: Proposition 65 Warning for California Residents
View Details More Information | Manufacturer | Jet |
|---|
| Condition | New |
|---|
| UPC | 00731325709049 |
|---|
| Features | - Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
|
|---|
| Horsepower | 1.5 HP |
|---|
| Motor Phase | 1 Ph |
|---|
| Warranty | 2 Years |
|---|
| Type | Mill/Drill with Newall DP700 DRO |
|---|
| Column Diameter | 4-1/2" |
|---|
| Face Mill Capacity | 4" |
|---|
| Maximum Distance Spindle to Table | 15-3/4" |
|---|
| Model Number | JMD-40GH |
|---|
| Number of Spindle Speeds | 6 |
|---|
| Overall Dimensions (L x W x H) | 28" x 39-1/4" x 42-1/2" |
|---|
| Quill Diameter | 3" |
|---|
| Range of Spindle Speeds (RPM) | 65, 130, 220, 480, 925, 1550 RPM |
|---|
| Spindle Taper (In. x TPI) | R-8 |
|---|
| Spindle Travel | 5" |
|---|
| Swing | 20-1/2" |
|---|
| Table Longitudinal Travel | 20-1/2" |
|---|
| Weight | 694 lbs |
|---|
| Motor Voltage | 115/230 V |
|---|
