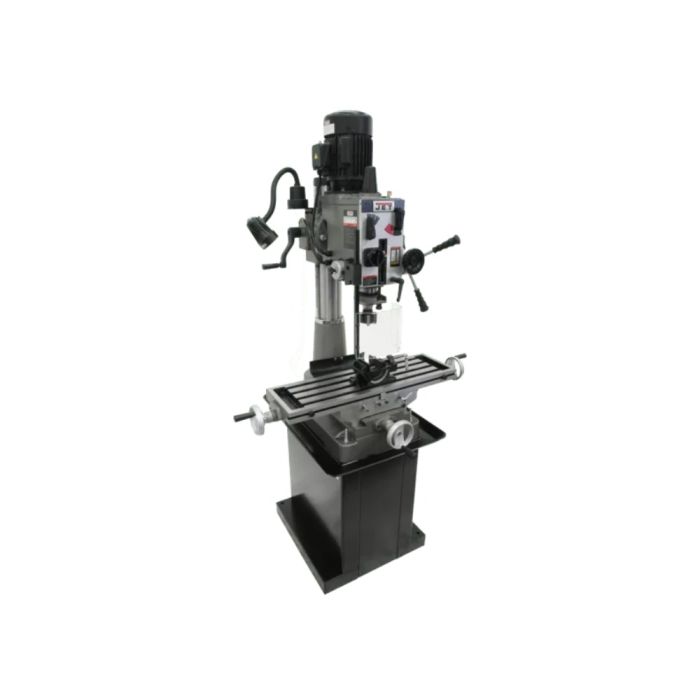

Jet JT9-351141 JMD-40GH, Geared Head Mill/Drill with Newall DP700 2-Axis DRO & X-Powerfeed Ships direct from manufacturer
Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325709056 Features Calibrated fine down feed built in CSA/CUS Certified Easy to read internal depth gauge Full power to the cutting tools through 6 speed geared head Heavy-duty design allows for a variety of precision drilling applications Mill Drill Stand, p/n 350045, shown in some images, is optional Milling table allows for movement Power Downfeed standard R8 spindle allows use of all mill tooling Rapid spindle speed changes through quick-select gear shift levers Horsepower 1.5 HP Motor Phase 1 Ph Warranty 2 Years
Type Mill/Drill with Newall DP700 DRO Base Dimensions 24-1/4" x 15-15/16" Column Diameter 4-1/2" Face Mill Capacity 4" Maximum Distance Spindle to Table 15-3/4" Model Number JMD-40GHPF Number of Spindle Speeds 6 Overall Dimensions (L x W x H) 28" x 39-1/4" x 42-1/2" Powerfeed X-Powerfeed Quill Diameter 3" Range of Spindle Speeds (RPM) 65 - 1550 RPM Spindle Taper (In. x TPI) R8 Spindle Travel 5" Spindle Travel Auto 4-1/2" Swing 21" Table Longitudinal Travel 20-1/2" Table Size (L x W) 8-1/4" x 28-3/4" Weight 721 lbs Motor Voltage 115/230 V
