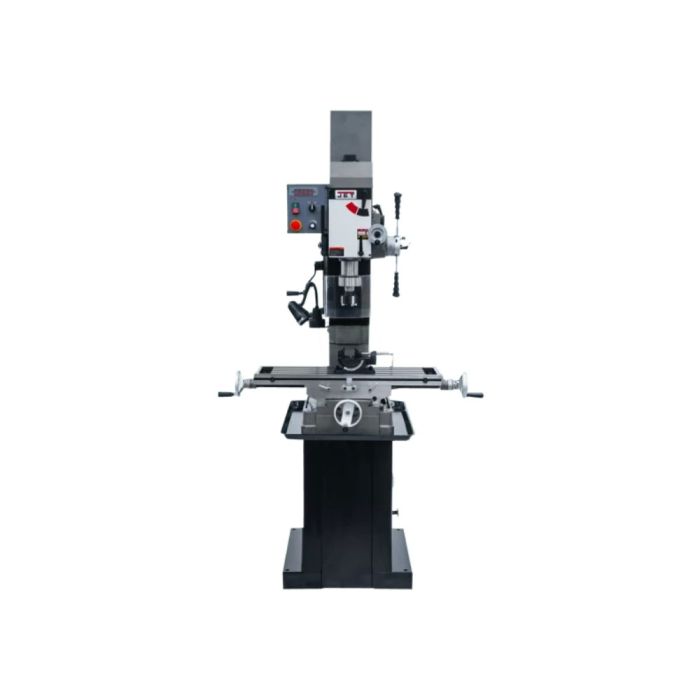

Jet JT9-351155 JMD-45VSPF, Variable Speed Square Column Mill/Drill with Newall DP700 2-Axis DRO & X-Axis Powerfeed Ships direct from manufacturer
Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325709179 Features Easy to read internal depth gauge Full power to the cutting tools through Variable Speed geared head Heavy-duty design allows for a variety of precision drilling applications Mill Drill Stand, p/n 350045, shown in some images, is optional Milling table allows for movement R8 spindle allows use of all mill tooling Rapid spindle speed changes through quick-select gear shift levers Square column with dovetail ways Horsepower 1.5 HP Motor Phase 1 Ph
Type Mill/Drill with Newall DP700 2-Axis DRO Base Dimensions 26-11/16" x 15-15/16" Face Mill Capacity 4" Maximum Distance Spindle to Table 18-1/8" Model Number JMD-45VSPF Overall Dimensions (L x W x H) 29" x 36" x 50" Powerfeed X-Axis Powerfeed Quill Diameter 3" Range of Spindle Speeds (RPM) 50 - 2500 RPM Spindle Taper (In. x TPI) R8 Spindle Travel 5" Spindle Travel Auto 4-1/4" Swing 19-11/16" Table Longitudinal Travel 20-1/2" Table Size (L x W) 9-1/2" x 32-1/4" Warranty 2 Year Weight 827 lbs Motor Voltage 115/230V
