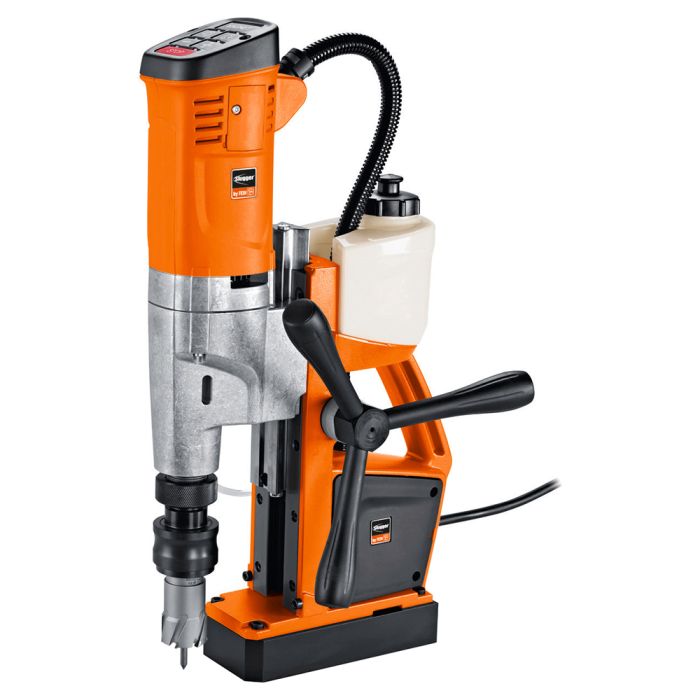

Small, long-stroke, single-speed universal magnetic core drill with forward / reverse rotation, MT2 tool mount and maximum functionality for flexible work on the construction site.
WARNING: Proposition 65 Warning for California Residents View Details
Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades
Perfect power-to-weight ratio, thanks to compact, weight-optimized design and Fein 1100 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation
Simple and error-proof control concept in the operator's field of view
Easy to read convenient magnetic holding force display
High magnetic holding force
Motion sensor
Additional magnet switch in the drill stand
Integrated coolant tank
Hand feed wheel can be mounted on either side
"Memory function" speed storage
Optional using accessory
Electronic speed reduction
Tip sensor
Electronic speed setting
Speed-controlled tacho electronics
Includes
Coolant Tank
Safety Strap
Chip Hook
Pilot Pin
Chip Guard
Case
Application
Mag Base Drilling Metal Up To 1 3/8" Diameter, Twist Drills with Drill Chuck, Spiral Drilling with MT Fitting, Tapping, Countersinking, Reaming, Performing Overhead Work, Installation Work, Workshop Jobs
Electric Brake
No
Variable speed
No
Specifications
Type
Core Drill
Corded or Cordless
Corded
Power Consumption
1,100 W
Power Output
550 W
Full Load Speed (RPM)
130 - 520 RPM
Mount Type
MT 2
Maximum Carbide Cutting Diameter
1 3/8"
Maximum Drilling Depth
2" (3")
Maximum Twist Drill Diameter
3/4"
Cutter Holder
3/4"
Tapping
M 14
Maximum Reaming Diameter
3/4"
HSS Maximum Cutting Diameter
1 3/8"
Maximum Countersinking Diameter
1 1/4"
Stroke Rate
5 5/16"
Total Stroke Range
10 1/4"
Magnetic Holding Force
2248 lbs
Magnetic Base Dimension
6 7/8" x 3 1/8"
Cord Length (with Plug)
13.1'
Weight
23.59 lbs
Sound Pressure Level LpA
82.3 dB
Sound Power Level LWA
93.3 dB
Peak Sound Value LpC Peak
95.9 dB
Vibration Value 1 αhv (3-Way)
αh,D <2,5 m/s²
Measurement Uncertainty of the Measured Value KpA
5 dB
Measurement Uncertainty of the Measured Value KWA
5 dB
Measurement Uncertainty of the Measured Value KpCpeak
