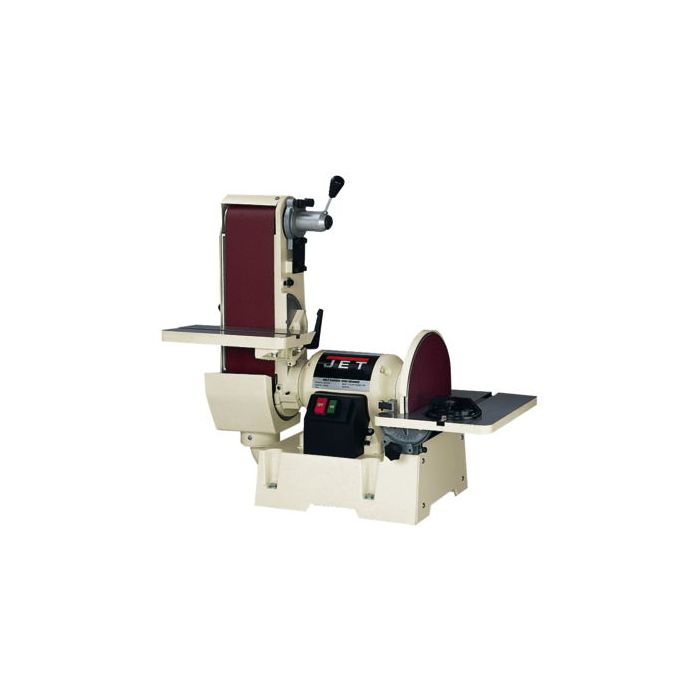

JET 708599 JSG-6DC, 6" x 48" Belt / 12" Disc Sander, 1-1/2HP, 1Ph 115/230V

SKU
JT9-708599
$1,869.00
Ships direct from manufacturer?

FREE SHIPPING! ON ORDERS OVER $99

The JET JSG-6DC sander combines a 12 inch disc and a 6 inch x 48 inch belt to provide raw industrial 1.5 HP sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick release belt tension lever and a quick lock dust cover for the disc. The built in handle allows for easy portability around the workshop.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275563767
Features
  • Two precision-ground cast iron tables have positive stops at 90° and 45° for sanding flat pieces or mitered angles; allows belt sander to be used vertically, horizontally or anywhere in-between
  • Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use
  • Graphite covered steel platen runs cooler increasing machine and belt life
  • Specially designed belt guard allows full use of the 6 inch belt width and length
  • Tracking adjustment knob with quick-lock handle keeps belt on track during use
  • Quick-release belt tension lever makes belt changes fast and easy
  • Quick-lock dust cover allows fast disc changes
  • Single 4 inch dust port on the back of the base collects dust effectively from both the belt and disc
  • Powerful 1-1/2HP motor easily handles the toughest sanding operations
  • Built-in handles for easier portability
PDFs
Horsepower1.5 HP
Motor Phase1 Ph
Size (Inch)12"
Stationary typeBenchtop
Warranty5-Year
Disc Speed1725 RPM
Disc Table Tilt25° Up, 45° Down
Disc Table Size (L x W)16-1/2" x 10"
Sanding Belt Size (L x W)48" x 6"
Belt Speed2500 RPM
Belt Table Tilt20° Up, 45° Down
Belt Table Size (L x W)12-1/2" x 7"
Dust Port Outside Diameter4"
Motor Voltage115/230 V
Prewired Voltage115 V
Motor Amps12/6 Amps
Length35"
Width22"
Height with Belt Arm(Horizonta/Vertical)18"/34-1/2"
