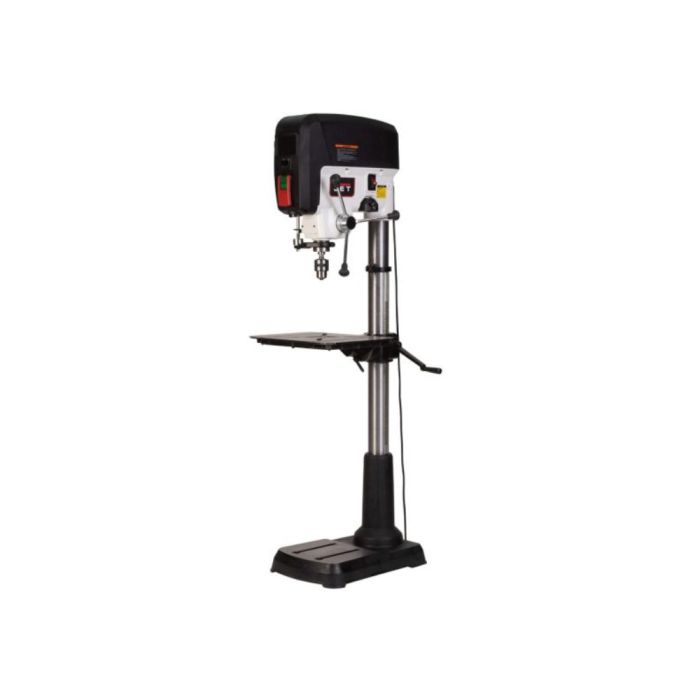

Jet JT1-2060, JDP-20S 20" Smart Drill Press
Meet the JET JDP-20S. The first true Smart Drill Press in the JET lineup, built to redefine precision, power, and ease of use in woodworking. This floor-standing machine combines advanced digital intelligence with industrial-grade performance, unlocking new capabilities for pros, schools, and serious DIYers.
Smarter Work Starts Here: A vibrant 5" touchscreen user interface puts control at your fingertips, with 22 tool types, 15 customizable user presets, and RPM recommendations based on your bit and material. The intuitive interface is built for all skill levels. Woodworkers can lock settings with password protection to prevent unauthorized users or setting changes.
No Guesswork, Just Results: Built-in load monitoring, preset memory, and a guided interface mean every user gets professional results with minimal setup time.
Bigger Capacity, More Possibilities: Featuring a 20" swing, 6" spindle travel, and a tilting cast-iron table, this is the largest and most versatile drill press JET has ever made.
Engineered for Performance: The 1.5 HP brushless motor delivers smooth, consistent power for demanding jobs, with better reliability, less wear, and quieter operation than belt-driven systems. The integrated LED light and laser guide illuminate your work and ensure precise bit alignment for fewer mistakes.
Competitive Edge: Outperforms the competition with smarter technology, easy to use touch-screen interface and an industry leading 5 year warranty
Ideal for: Professional Woodworkers, Advanced DIYers, Educational Institutions, Light Manufacturing, Users who want precision, ease of use and repeatable results.
| Manufacturer | Jet |
|---|---|
| Condition | New |
| Features |
|
| Horsepower | 1.5 HP |
| Motor Phase | 1 Ph |
| Speed (RPM) | 150 to 3,000 RPM |
| Type | Drill Press |
|---|---|
| Motor Type | Brushless |
| Voltage | 115/230V |
| Cycle | 60Hz |
| Power Transfer | Motor Direct Drive |
| On/Off Switch | Push Button with Safety Key, Paddle Stop |
| Swing | 20" |
| Chuck Style and Shank Capacity | Keyed, 5/8" |
| Chuck Arbor Taper | MT-2 to JT-3 |
| Spindle Taper | MT-2 |
| Spindle Travel, Maximum | 6" |
| Spindle Travel Per One Revolution of Handle | 6" |
| Quill Diameter | 2.6" |
| Number of Spindle Speeds | Continuously Variable Speed |
| Maximum Spindle to Table Distance | 27.63" |
| Maximum Spindle to Base Distance | 46.45" |
| Maximum Chuck to Table Distance | 24" |
| Minimum Chuck to Table Distance | 1.5" |
| Maximum Chuck to Base Distance | 42.9" |
| Work Lamp Light | Integrated LED |
| Depth Stop Type | 6" Mechanical Hard Stop |
| Head Material | Cast Iron |
| Table Material | Precision-Ground Cast Iron |
| Table Insert Material | MDF |
| Column Material | Steel |
| Base Material | Cast Iron |
| Table Size (L x W) | 20.24" x 13.94" |
| Table Slots (4) (L x W) | 3-1/8" x 5/8" |
| Table T-Slots (2) (W x D) | 3/8" x 5/8" |
| Distance Between T-Slots (centers) | 8-7/16" |
| Table Tilt | 90 deg. L and R |
| Table Rotation Around Column | 360 Deg |
| Table Elevating System | Worm Gear with Rack |
| Table Insert | 3.74" x 3.74" |
| Recommended Maximum Weight on Table | 66 lbs. |
| Base Size (L x W) | 23.8" x 15.9" |
| Base Working Surface (L x W) | 11.42" x 12.6" |
| Base Slots (2) (W x L) | 5/8" x 7-7/8" |
| Distance Between Base Slots (centers) | 5-5/16" |
| Column Diameter | 3.35" |
| Overall Dimensions (L x W x H) | 24" x 25.5" x 71.5" |
| Weight | 218.46 lbs. |
