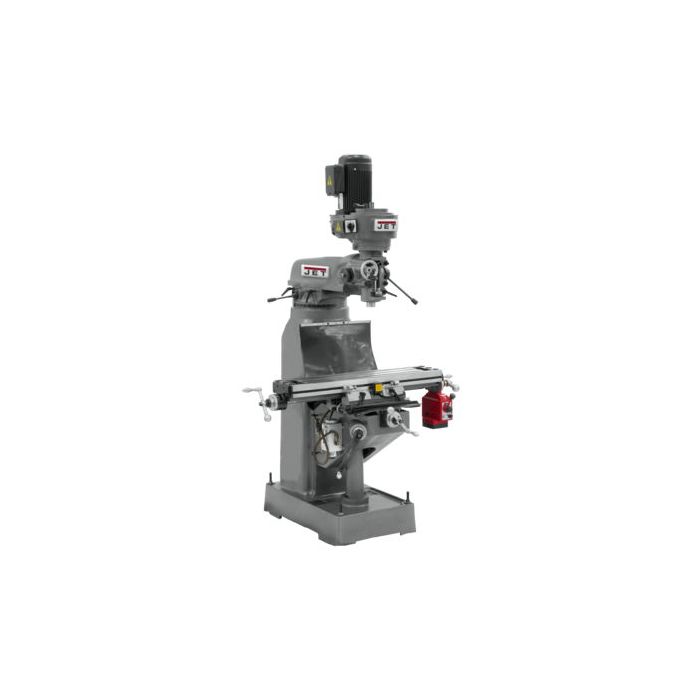

JET 690082 JTM-1 Milling Machine, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V Only
Ships direct from manufacturer
Usually ships in 24-48 hours
Jet's Step Pulley milling machine is the perfect solution for maintenance shops, repair shops, job shops, schools and light production.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer |
Jet |
Condition |
New |
UPC |
66275510588 |
Features |
-
Meehanite casting
-
High precision Class 7 spindle bearings
-
Heavy-duty splined motor drive
-
Three-stage power downfeed with automatic stop
-
Precision bored and honed milling head
-
Large diameter quill is chromed
-
Spindle head is internally cooled
-
Satin chrome finished dials
-
One-piece quill pinion and shaft
-
Heavy-duty spindle brake
|
Warranty |
2 Year Warranty |
Collet Capacity | 1/8 - 7/8 |
---|
Distance Spindle to Column (in.) | 19 |
---|
Distance Spindle to Column (min./in.) | 4-1/2 |
---|
Height | 72 inch |
---|
Length | 69 inch |
---|
Max Distance Spindle to Table ( in.) | 17-1/2 |
---|
Model Number | JTM-1 |
---|
Motor | 2HP, 230V, 3Ph |
---|
Net Weight | 2056 pound |
---|
Note | Use of static phase converter will void warranty |
---|
Number of Spindle speeds | 16 |
---|
Overall Dimensions | 57 x 64 x 82 |
---|
Part Number | 690082 |
---|
Quill Diameter (in.) | 3-3/8 |
---|
Quill Down feed Rates (IPR) | .0015? .003?.006 |
---|
Range of Spindle Speeds (RPM) | 80 ? 5,440 |
---|
Spindle Taper | R-8 |
---|
Spindle Travel (in.) | 5 |
---|
T-Slot Centers (in.) | 2-1/2 |
---|
T-Slots Number and Size (in.) | 3 and 5/8 |
---|
Table Cross Travel (in.) | 12-1/2 |
---|
Table Longitudinal Travel (in.) | 23-7/8 |
---|
Table Size (in.) | 9 x 42 |
---|
Travel of Knee (in.) | 14-1/2 |
---|
Travel of Ram (in.) | 13-3/8 |
---|
Width | 59 inch |
---|
Work Table Weight Capacity (lbs.) | 550 |
---|
