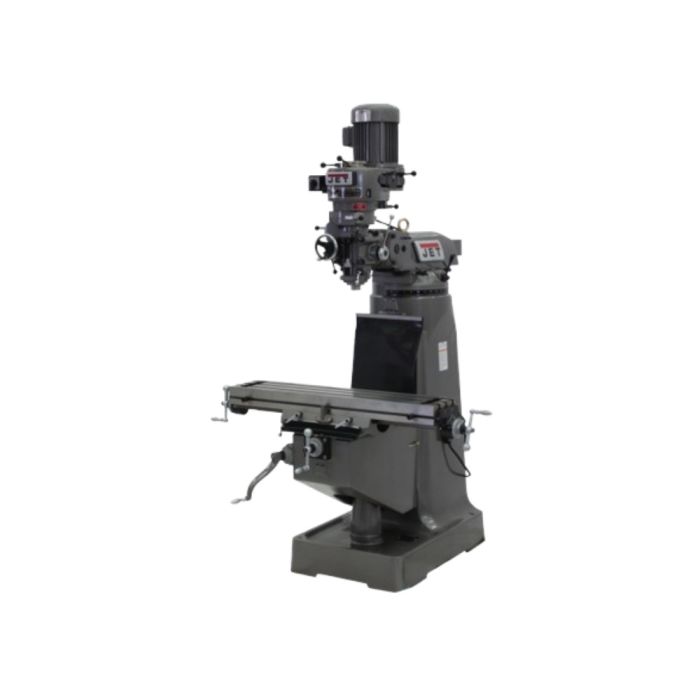

Jet JT9-692190, JTM-1 Mill/Drill With 3-Axis Newall DP500 DRO

SKU
JT9-692190
$15,278.00
Ships direct from manufacturer?

JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill).

The JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite castings which ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325453751
Features
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Satin chrome finished dials
  • Tolerance test sheet included
Horsepower2 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill/Drill
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)19"
Max Distance Spindle to Table17-1/2"
Model NumberJTM-1
Voltage230V
Number of Axis3 (Quill)
Number of Spindle Speeds16
Overall Dimensions (L x W x H)57" x 64" x 82"
Prop 65Cancer and Reproductive Harm
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006
Range of Spindle Speeds (RPM)80 - 5,440 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5
Style (Type)Step Pulley R8
T-Slot Centers2-1/2"
Table Cross Travel12-1/2"
Table Longitudinal Travel23-7/8"
Table Longitudinal Travel With Powerfeed20-2/7"
Table Size (L x W)9 x 42"
Travel of Knee14-1/2"
Travel of Ram13-3/8"
Work Table Weight Capacity (Lbs.)550 lbs
Weight2200.0 lbs
