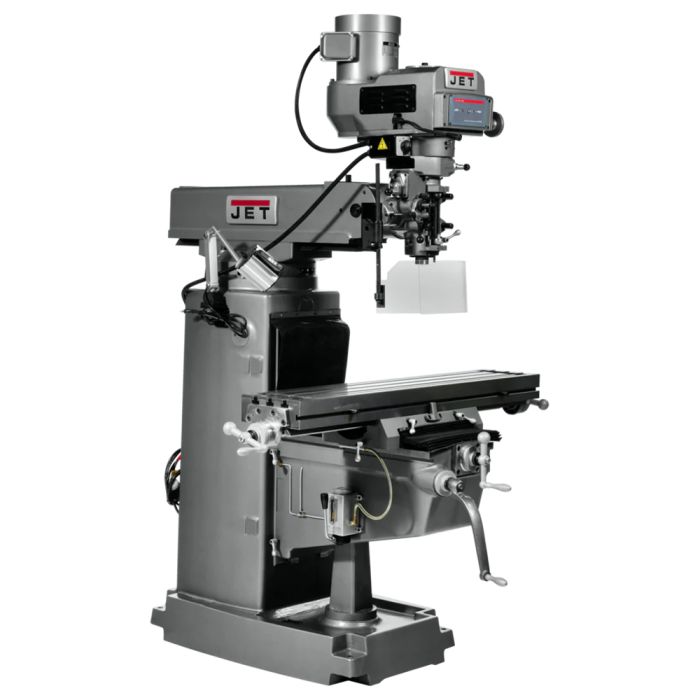

JET 690235 Mill with ACU-Rite 203 Dro with X-Axis Powerfeed, Power Draw Bar & 8" Riser Block Ships direct from manufacturer
The JET JTM-1050VS2 features Meehanite castings, a heavy-duty hardened and ground 10 inch x 50 inch table and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 66275599091 Features
Certified Meehanite Castings
Hardened and ground table
Chrome lead screws on X and Y axis
Turcite B on X and Y axis
Satin chrome finish on dials
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearing
Spindle head is internally cooled
No fuse breaker power connections
Heavy duty motor drive
Chrome plated motor shaft with bearing support at end
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle break
Locks on all moveable surfaces
Hardened and ground square vertical knee ways and cross ways
Adjustable gibs throughout
Internal coolant tank built into base for use with coolant system (coolant pump not included)
Tolerance test sheet included
One shot lubrication system
Video VIDEO
Horsepower 3 HP Motor Phase 3 Ph Stationary type ACU-Rite 203 Dro Warranty 2 Year
Style Variable Speed R8 Digital Readout ACU-RITE 203 Number of Axis 2 Powerfeed X-Axis Power Draw Bar Pneumatic Spindle Taper R-8" Table Size Length 10" Table Size Width 50" Quill Diameter 3-3/8" Number of Spindle Speeds Variable Range of Spindle Speeds (RPM) 70 - 3,800 RPM Quill Down Feed Rates 0.0015 - 0.003 - 0.006 IPR Spindle Travel 5" Head Movement 90 Deg R & L, 45 Deg F & B Max Distance Spindle to Table 19" Maximum Distance Spindle to Column 26" Minimum Distance Spindle to Column 5-1/2" Collet Capacity 1/8" - 7/8" Table Longitudinal Travel 35" Table Longitudinal Travel With Powerfeed 293/4" Table Cross Travel 15-1/4" T-Slots Number and Size 3" & 5/8" T-Slot Centers 2-1/2" Work Table Weight Capacity 720 lbs Travel of Knee 14-1/4" Travel of Ram 20-1/2" Voltage 230/460V Prewired (V) 230V Length 96" Width 78" Height 88" Weight 2.900 lbs
