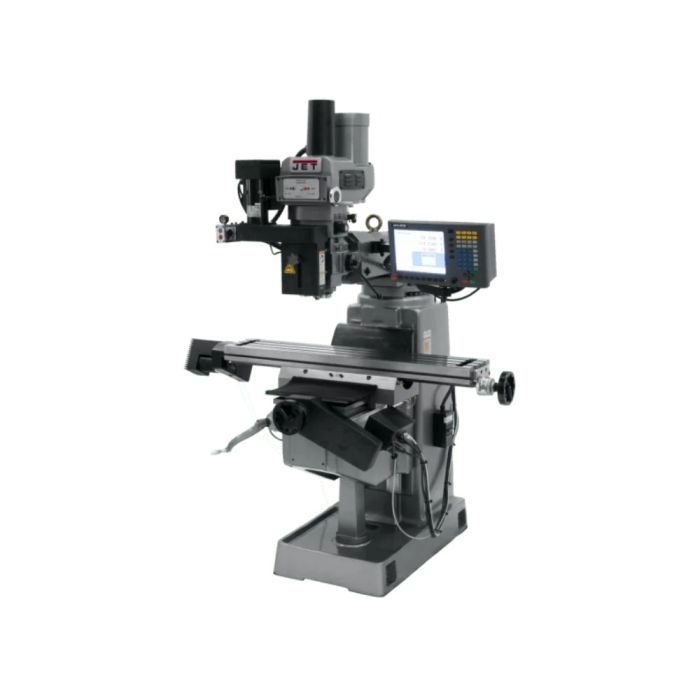

Jet JT9-690684 JTM-1050EVS2/230, Mill with 3-Axis ACU-RITE MILLPWR G2 CNC CNTRLR & Air PWRD Drawbar

SKU
JT9-690684
$63,799.00
Ships direct from manufacturer ?

JET offers complete, factory-installed CNC packages with our choice of 2- or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features us've come to expect backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325482102
Features
  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • CNC electronic variable speed vertical milling machine package for JTM-1050EVS
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Precision ground ball screws eliminate backlash for precise lateral movements
  • USB + Ethernet compatible
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with 3-Axis
CNC PackageAcu-Rite Millpwr G2
Collet Capacity1/8" - 7/8"
Column Width20"
Distance Spindle to Column (Maximum)26-3/4"
Inverter TypeDelta, B
Maximum Distance Spindle to Table20-3/4"
Model NumberJTM-1050EVS2/230
Number of Axis3
Overall Dimensions (L x W x H)66" x 63" x 87"
Power Draw BarPneumatic
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006 IPR
Range of Spindle Speeds (RPM)60 - 4,500 RPM
Saddle Width11-1/2"
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleCNC
Table Cross Travel14-3/4"
Table Longitudinal Travel35-1/3"
Table Longitudinal Travel with Powerfeed29-7/8"
Table Size (L x W)10" x 50"
Travel of Knee16-1/8"
Travel of Ram15-7/8"
T-Slot Centers2-1/2"
Weight2860 lbs
Work Table Weight Capacity840 lbs
Motor Voltage230 V
