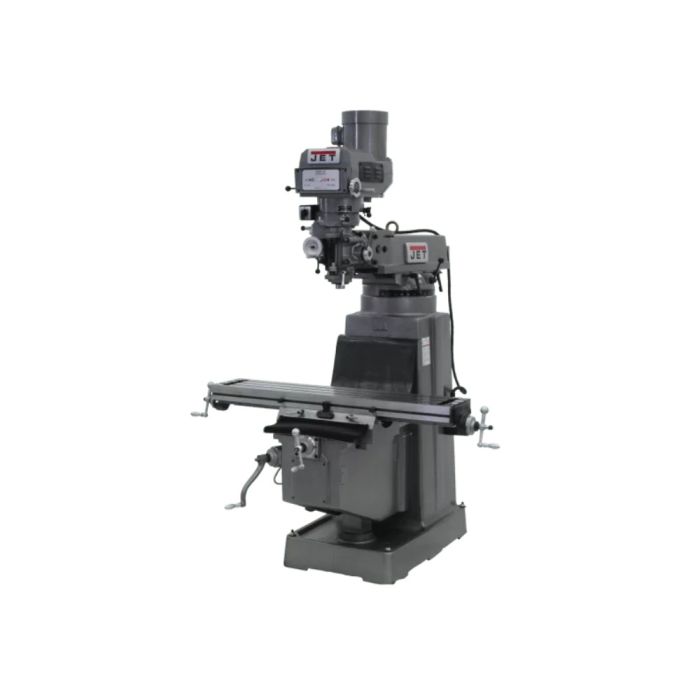

Jet JT9-690940 JTM-1050, Mill with 3-Axis ACU-RITE G-2 MILLPWR CNC

SKU
JT9-690940
$53,999.00
Ships direct from manufacturer?

JET offers complete, factory-installed CNC packages with our choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features us've come to expect backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325335118
Features
  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Precision ground ball screws eliminate backlash for precise lateral movements
  • USB + Ethernet compatible
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with ACU-RITE G-2 MILLPWR CNC
CNC PackageAcu-Rite Millpwr G2
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)26"
Maximum Distance Spindle to Table19"
Model NumberJTM-1050 CNC G2
Number of Axis3
Overall Dimensions (L x W x H)96" x 69" x 87"
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006 IPR
Range of Spindle Speeds (RPM)70 - 3,800 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleCNC
Table Cross Travel15-1/4"
Table Longitudinal Travel35"
Table Size (L x W)10" x 50"
Travel of Knee14-1/4"
Travel of Ram20-1/2"
T-Slot Centers2-1/2"
Weight3200 lbs
Work Table Weight Capacity720 lbs
Motor Voltage230/460 V
