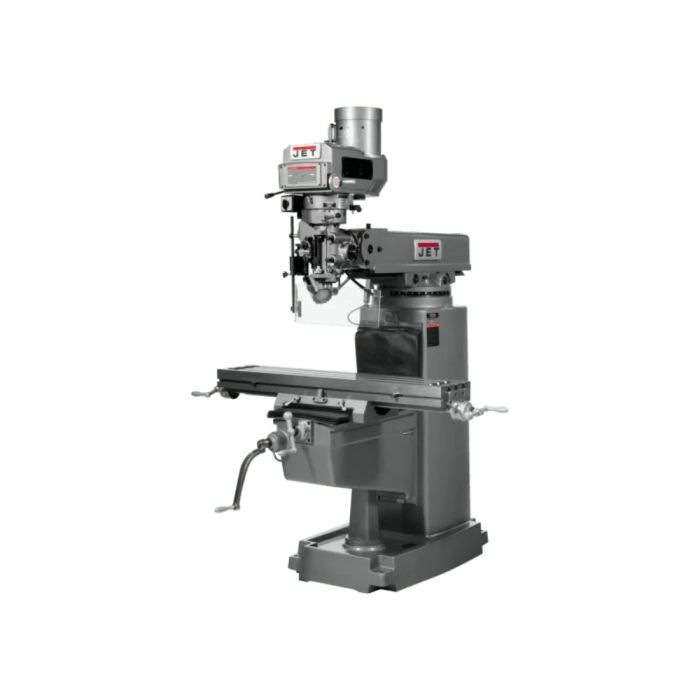

Jet JT9-690234 JTM-1050VS2 Mill with 3-Axis Newall DP700 DRO (Quill) with X, Y and Z-Axis Powerfeeds And Power Draw Bar

SKU
JT9-690234
$27,334.00
Ships direct from manufacturer ?

Featuring Meehanite castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle, this Variable Speed Milling Machine provides consistent and reliable operation. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325242041
Features
  • Adjustable gibs throughout
  • Chrome lead screws on X and Y axis
  • Chrome-plated motor shaft with bearing support at end
  • Hardened and ground square vertical knee ways and cross ways
  • Heavy duty motor drive
  • Locks on all moveable surfaces
  • One shot lubrication system
  • Spindle head is internally cooled
  • Three stage power downfeed with automatic stop
  • Tolerance test sheet included
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with Newall DP700 DRO
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)26"
Max Distance Spindle to Table19"
Model NumberJTM-1050VS2
Number of Axis3 (Quill)
Overall Dimensions (L x W x H)96" x 78" x 88"
Power Draw BarPneumatic
PowerfeedX, Y, Z-Axis
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR).0015 - 0.003 - 0.006 IPR
Range of Spindle Speeds (RPM)70 - 3,800 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleVariable Speed R8
Table Cross Travel15-1/4"
Table Longitudinal Travel35"
Table Longitudinal Travel With Powerfeed29-3/4"
Table Size (L x W)10" x 50"
Travel of Knee14-1/4"
Travel of Ram20-1/2"
T-Slot Centers2-1/2"
Weight2900 lbs
Work Table Weight Capacity720 lbs
Motor Voltage230/460 V
