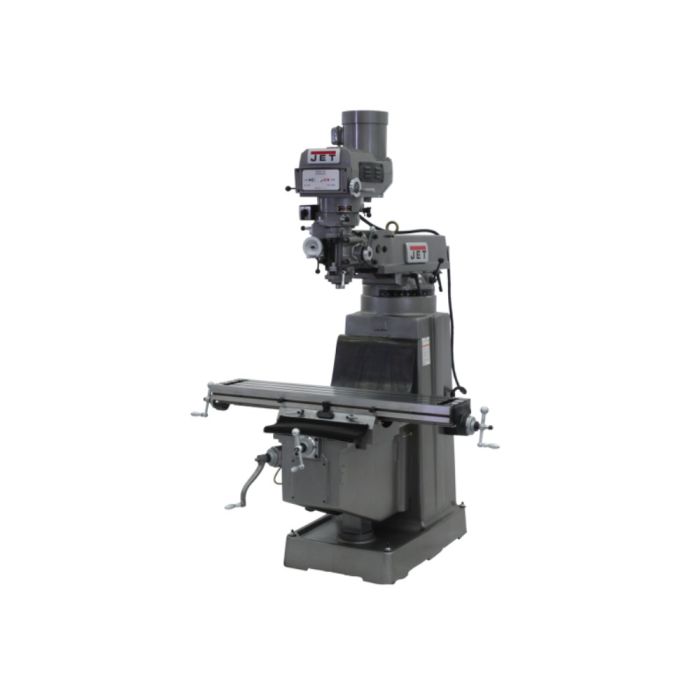

Jet JT9-691172, JTM-1050VS2 Milling Machine With Newall DP700 DRO

SKU
JT9-691172
$22,604.00
Ships direct from manufacturer ?

JTM-1050VS2 Mill With Newall DP700 DRO With Power Draw Bar.

The JETJTM-1050VS2 features Certified Meehanite castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00662755987977
Features
  • Adjustable gibs throughout
  • Chrome lead screws on X and Y axis
  • Chrome-plated motor shaft with bearing support at end
  • Hardened and ground square vertical knee ways and cross ways
  • Heavy-duty spindle brake
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One-pieced quill pinion and shaft
  • Spindle head is internally cooled
  • Tolerance test sheet included
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMilling Machine
Column Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)26"
Max Distance Spindle to Table19"
Model NumberJTM-1050VS2
Voltage230/460V
Number of Axis3
Overall Dimensions (L x W x H)96" x 78" x 88"
Power Draw BarPneumatic
Prop 65Cancer and Reproductive Harm
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006
Range of Spindle Speeds (RPM)70 - 3,800 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5
Style (Type)Variable Speed R8
T-Slot Centers2-1/2"
T-Slot Centers15-1/4"
Table Cross Travel35"
Table Longitudinal Travel With Powerfeed29-3/4"
Table Size (L x W)10" x 50"
Travel of Knee14-1/4"
Travel of Ram20-1/2"
Work Table Weight Capacity720 lbs
Weight3000.0 lbs
