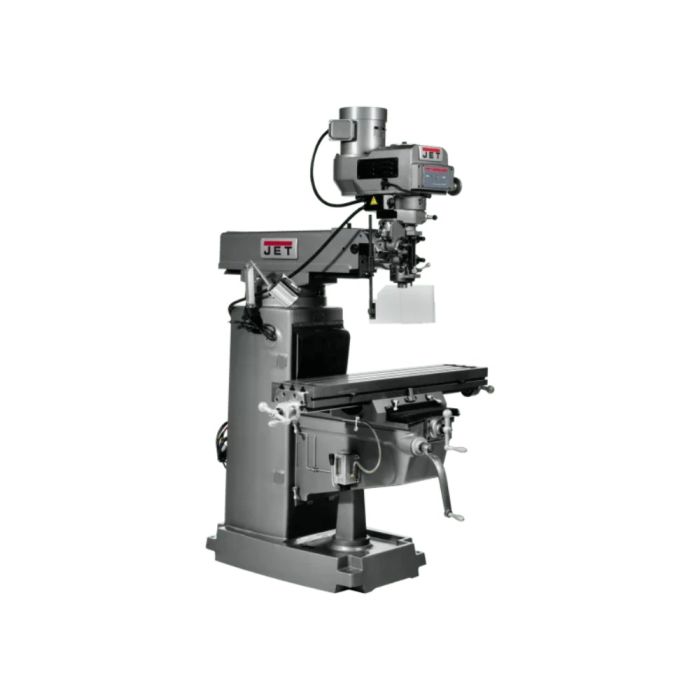

Jet JT9-691050 JTM-1050VS2, 230/460V 3Ph Variable Speed Mill with LED Worklamp & Spindle Guard

SKU
JT9-691050
$18,149.00
Ships direct from manufacturer ?

The JET JTM-1050VS2 features our proprietary Meehanite column castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features us've come to expect, all backed by the industry-leading JET Two Year Warranty

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325764932
Features
  • Chrome lead screws on X and Y axis
  • Hardened and ground table
  • Hardened and ground table capable of supporting 840 pounds
  • Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
  • JET's proprietary certified Meehanite column castings
  • One shot lubrication system
  • Precision bored and honed milling head
  • Three stage power downfeed with automatic stop
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill
Collet Capacity1/8" - 5/8"
Column Width13"
Distance Spindle to Column (Max.)27"
Model NumberJTM-1050VS2
Overall Dimensions (L x W x H)63" x 63" x 89"
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.008 IPR
Range of Spindle Speeds (RPM)60 - 500/500 - 4200 RPM
Saddle Width20"
Spindle Taper (In. x TPI)R8
Spindle Travel5"
Table Cross Travel14-3/4"
Table Longitudinal Travel34-1/4"
Table Size (L x W)10" x 50"
Travel of Knee16-1/8"
T-Slot Centers2-1/2"
Weight2466 lbs
Work Table Weight Capacity840 lbs
Motor Voltage230/460 V
