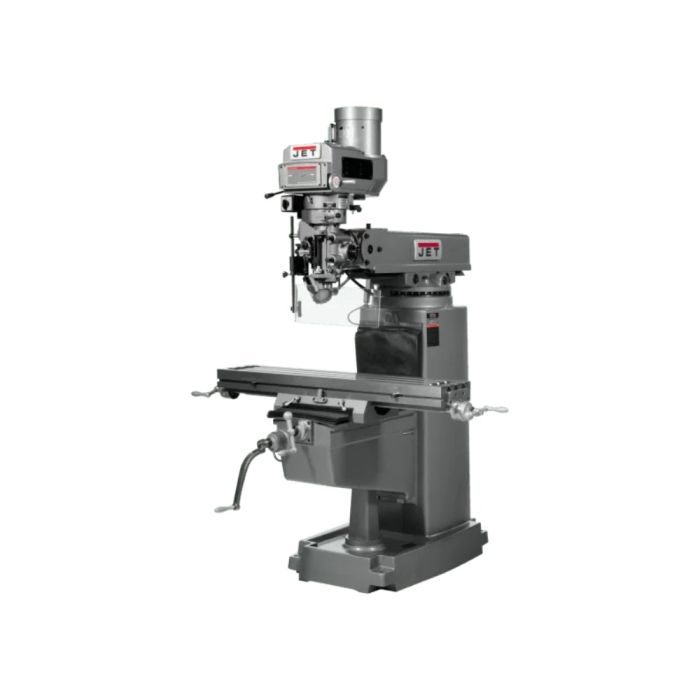

Jet JT9-690450 JTM-1050VS2, Mill with ACU-RITE 203 DRO, X, Y and Z-Axis Powerfeeds

SKU
JT9-690450
$26,729.00
Ships direct from manufacturer?

The JET JTM-1050VS2 features Meehanite castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features we've come to expect, all backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325343083
Features
  • Adjustable gibs throughout
  • Chrome lead screws on X and Y axis
  • Chrome-plated motor shaft with bearing support at end
  • Hardened and ground square vertical knee ways and cross ways
  • Heavy duty motor drive
  • One shot lubrication system
  • Spindle head is internally cooled
  • Tolerance test sheet included
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with ACU-RITE 203 DRO
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Maximum)26"
Maximum Distance Spindle to Table19"
Model NumberJTM-1050VS2
Motor Voltage230/460 V
Number of Axis2
Overall Dimensions (L x W x H)96" x 78" x 88"
PowerfeedX, Y and Z-Axis
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR).0015 - .003 - .006 IPR
Range of Spindle Speeds (RPM)70 - 3,800 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleVariable Speed R8
Table Cross Travel15-1/4"
Table Longitudinal Travel35"
Table Longitudinal Travel with Powerfeed29-3/4"
Table Size (L x W)10" x 50"
Travel of Knee14-1/4"
Travel of Ram20-1/2"
T-Slot Centers2-1/2"
Weight2900 lbs
Work Table Weight Capacity720 lbs
