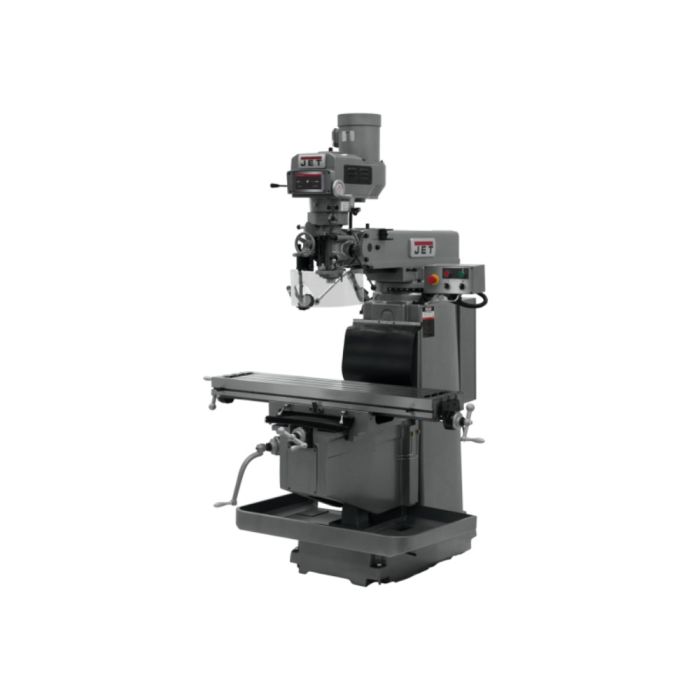

Jet JT9-698145, JTM-1254RVS Milling Machine with Acu-Rite 303 3X (K) DRO

SKU
JT9-698145
$32,669.00
Ships direct from manufacturer ?

JTM-1254RVS with Acu-Rite 303 3X (K) DRO X,Y&Z Powerfeeds & Air Power Drawbar.

We combined durability, strength, and precision engineering to create 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, JET mills provide ongoing automatic lubrication and quick nut spindle feed, along with the JET exclusive certified Meehanite castings that provide the end-user with an easier solution to leveling the machine without raising it off the floor. These heavy-duty mills are offered in both R-8 and NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty. CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325517293
Features
  • Adjustable gibs throughout
  • Dual locks on all moveable surfaces
  • Precision bored and honed milling head
  • Precision hardened and ground ways and table
  • Spindle Brake for rapid stopping of the spindle
  • Three Precision ground t-slots
  • Three-stage power downfeed with automatic stop
  • Two 115V outlets on electrical box for Powerfeeds only
Horsepower5 HP
Motor Phase3 Ph
Warranty2 Years
TypeMilling Machine
Column Width14-1/4"
Distance Spindle to Column (Max.)27-3/4"
Max Distance Spindle to Table23"
Model NumberJTM-1254RVS
Voltage230/460V
Number of Axis3 (Knee)
Overall Dimensions (L x W x H)92-1/8" x 79-7/8" x 104-1/4"
Power Draw BarPheumatic
Prop 65Cancer and Reproductive Harm
Quill Diameter4-1/8"
Quill Down Feed Rates (IPR)0.0015 – 0.003 – 0.008
Range of Spindle Speeds (RPM)80 - 3,800 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5
Style (Type)Variable Speed R8
T-Slot Centers2-1/2"
Table Cross Travel15-1/3"
Table Longitudinal Travel33-7/8"
Table Longitudinal Travel With Powerfeed28-1/4"
Table Size (L x W)12" x 54"
Travel of Knee19-1/4"
Travel of Ram25"
Work Table Weight Capacity925 lbs
Weight3260.0 lbs
