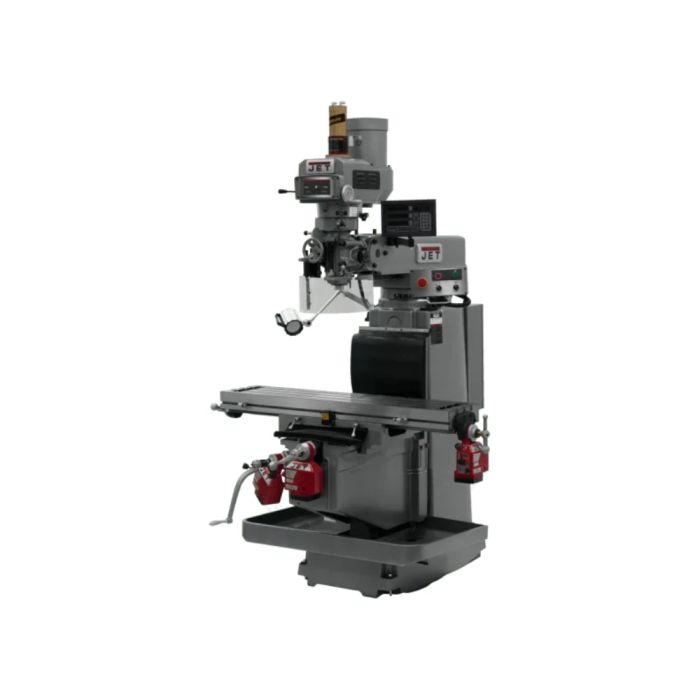

Jet JT9-698131 JTM-1254RVS with NEWALL DP700 DRO X, Y & Z Powerfeeds & Air Power Drawbar

SKU
JT9-698131
$32,779.00
Ships direct from manufacturer?

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication every 180 minutes and quick nut spindle feed along with the Certified Meehanite castings, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325516852
Features
  • Adjustable gibs throughout
  • Dual locks on all moveable surfaces
  • Heavy-duty spindle brake
  • Precision bored and honed milling head
  • Precision hardened and ground ways and table
  • Spindle Brake for rapid stopping of the spindle
  • Three Precision ground t-slots
  • Three-stage power downfeed with automatic stop
  • Two 115V outlets on electrical box for Powerfeeds only
Horsepower5 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with Newall DP700 DRO
Collet Capacity1/8" - 1"
Column Width14-1/4"
Distance Spindle to Column (Max.)27-3/4"
Max Distance Spindle to Table23"
Model NumberJTM-1254RVS
Overall Dimensions (L x W x H)92-1/8" x 79-7/8" x 104-1/4"
Power Draw BarPneumatic
Quill Diameter4-1/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.008 IPR
Range of Spindle Speeds (RPM)80 - 3,800 RPM
Saddle Width25-5/8"
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleVariable Speed R8
Table Cross Travel15-1/3"
Table Longitudinal Travel33-7/8"
Table Longitudinal Travel With Powerfeed28-1/4"
Table Size (L x W)12" x 54"
Travel of Knee19-1/4"
Travel of Ram25"
T-Slot Centers2-1/2"
Weight3969 lbs
Work Table Weight Capacity925 lbs
Motor Voltage230/460 V
