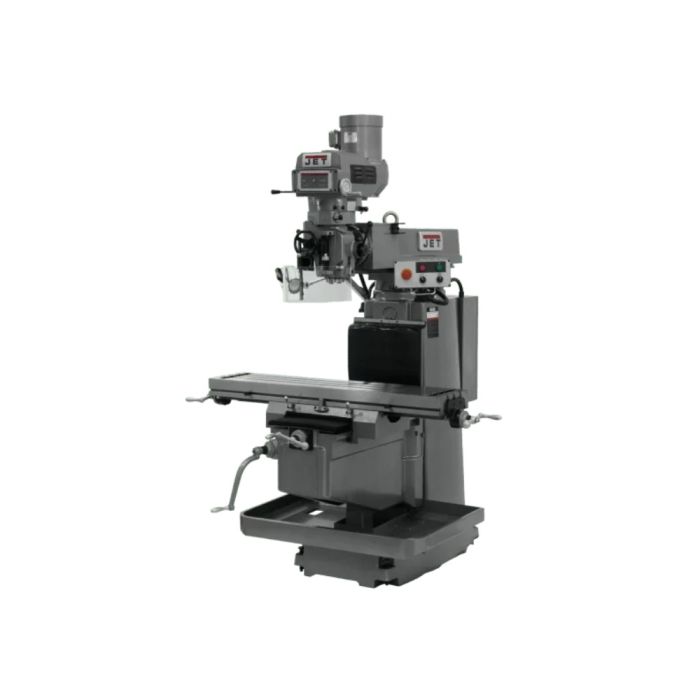

Jet JT9-691940 JTM-1254VS, Mill with 2-Axis ACU-RITE G-2 MILLPWR CNC

SKU
JT9-691940
$52,799.00
Ships direct from manufacturer?

JET offers complete, factory-installed CNC packages with our choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. CSA/CUS Certified. All the features us've come to expect backed by the industry-leading JET Two Year Warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00731325524925
Features
  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Adjustable gibs throughout
  • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Precision bored and honed milling head
  • Two 115V outlets on electrical box for Powerfeeds only
  • USB + Ethernet compatible
Horsepower5 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with 2-Axis ACU-RITE G-2 MILLPOWER CNC
Column Width14-1/4"
Distance Spindle to Column (Maximum)27-3/4"
Maximum Distance Spindle to Table23"
Model NumberJTM-1254VS CNC G2
Overall Dimensions (L x W x H)26.75" x 16.625" x 58.625"
Quill Diameter4-1/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006 IPR
Range of Spindle Speeds (RPM)80 - 3,800 RPM
Saddle Width25-5/8"
Spindle Taper (In. x TPI)NST #40
Spindle Travel5"
StyleCNC
Table Cross Travel15-1/3"
Table Longitudinal Travel33-7/8"
Table Size (L x W)12" x 54"
Travel of Knee19-1/4"
Travel of Ram25"
T-Slot Centers2-1/2"
Weight3696 lbs
Work Table Weight Capacity925 lbs
Motor Voltage230/460 V
