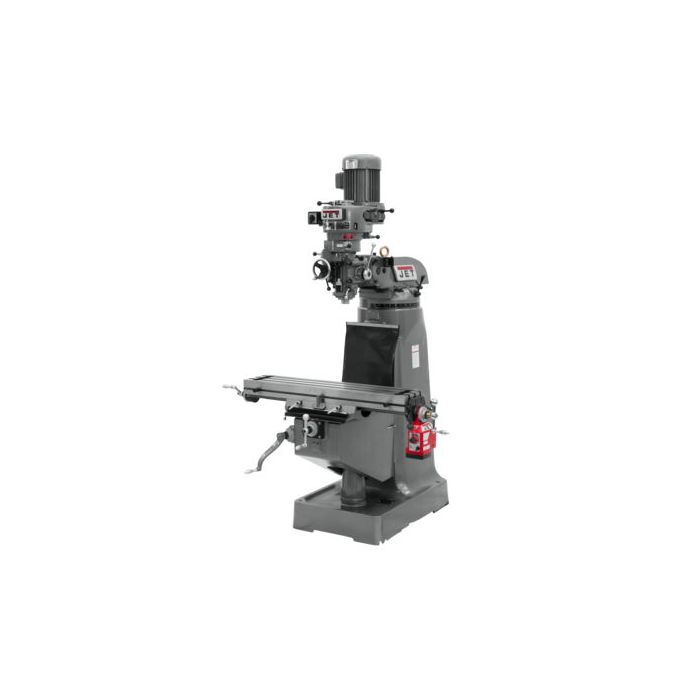

JET 690006 JTM-2 Mill with X Axis Powerfeed Installed
Ships direct from manufacturer
Usually ships in 24-48 hours
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer
Jet
Condition
New
UPC
66275551588
Features
Certified Meehanite Castings Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Spindle head is internally cooled Heavy duty splined motor drive One piece quill pinion and shaft Three stage power downfeed with automatic stop Heavy duty spindle brake Precision hardened and ground ways Precision ground table Standard Equipment Internal coolant tank built into base for use with coolant system (coolant pump not included) One shot lubrication system Way covers Draw bar Tool box with tools
Includes
PDFs
Catalog
Horsepower
2 HP
Motor Phase
3 Ph
Stationary type
Step Pulley R8
Warranty
2 Year
Motor Voltage 115/230 V Powerfeed X-Axis Spindle Taper R-8 TPI Table Size Length 9" Table Size Width 42" Quill Diameter 3-3/8" Number of Spindle Speeds 8 Range of Spindle Speeds (RPM) 80 - 2,720 RPM Quill Down Feed Rates (IPR) 0.0015 - 0.003 - 0.006 IPR Spindle Travel 5" Head Movement 90 Deg R & L, 45 Deg F & B Maximum Distance Spindle to Table 17-1/2" Maximum Distance Spindle to Column 19" Minimum Distance Spindle to Column 4-1/2" Collet Capacity 1/8" - 7/8" Table Longitudinal Travel 23-7/8" Table Longitudinal Travel With Powerfeed 20-2/7" Table Cross Travel 12-1/2" T-Slots Number and Size 3" - 5/8" T-Slot Centers 2-1/2" Work Table Weight Capacity 550 lbs Travel of Knee 14-1/2" Travel of Ram 13-3/8" Length 57" Width 64" Height 82"
