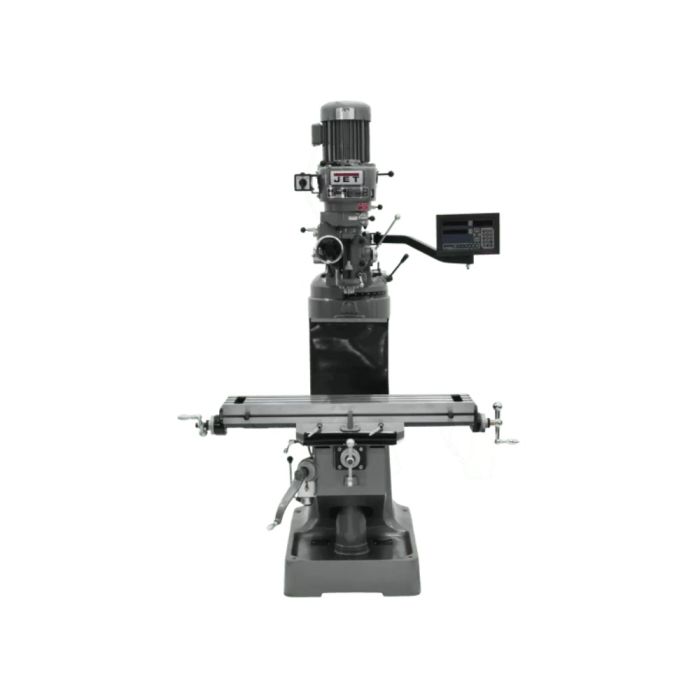

Jet JT9-691197 JTM-2 Mill with 3-Axis Newall DP700 DRO (Quill) Ships direct from manufacturer
Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures we get everything we need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features we've come to expect, all backed by the industry-leading JET Two Year Warranty
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00662755513510 Features Certified Meehanite castings Heavy duty splined motor drive Internal coolant tank built into base for use with coolant system (Coolant pump not included) Large Diameter quill is chromed One shot lubrication system Precision bored and honed milling head Precision hardened and ground ways Spindle head is internally cooled Three stage power downfeed with automatic stop Tolerance test sheet included Horsepower 2 HP Motor Phase 1 Ph Warranty 2 Years
Type Mill with Newall DP700 DRO Collet Capacity 1/8" - 7/8" Distance Spindle to Column (Max.) 19" Max Distance Spindle to Table 17-1/2" Model Number JTM-2 Number of Axis 3 (Quill) Number of Spindle Speeds 8 Overall Dimensions (L x W x H) 57" x 64" x 82" Quill Diameter 3-3/8" Quill Down Feed Rates (IPR) 0.0015 - 0.003 - 0.006 IPR Range of Spindle Speeds (RPM) 80 - 2,720 RPM Spindle Taper (In. x TPI) R-8 Spindle Travel 5" Style Step Pulley R8 Table Cross Travel 12-1/2" Table Longitudinal Travel 23-7/8" Table Longitudinal Travel With Powerfeed 20-2/7" Table Size (L x W) 9" x 42" Travel of Knee 14-1/2" Travel of Ram 13-3/8" T-Slot Centers 2-1/2" Weight 2200 lbs Work Table Weight Capacity 550 lbs Motor Voltage 115/230 V
