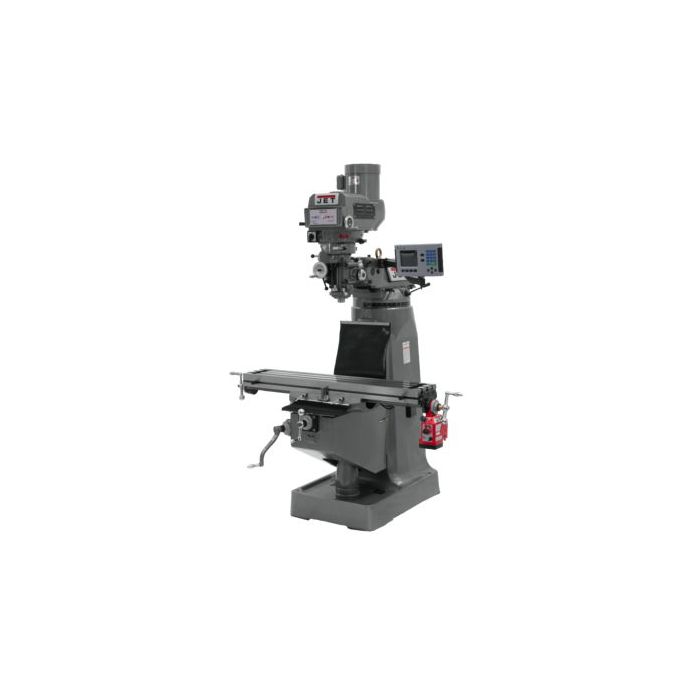

JET 690178 JTM-4VS-1 Milling Machine with X Axis Powerfeed

SKU
JT9-690178
$16,059.00
Ships direct from manufacturer?
Usually ships in 24-48 hours

JET Milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET Step Pulley, Variable Speed and CNC Mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET machine is backed by our industry-leading TWO-year warranty.

Milling Machine, Vertical Variable Speed, Jet, 66 L X 63 W X 85 Inch H, 9 X 49 Inch Table Dimension, 5 Inch Spindle Travel Length, 17 1/2 Inch Spindle to Table Distance, 4 1/2 to 19 Inch Spindle to Column Distance, 2 HP, 115/230 V, SPH, 230 V Prewired Motor, 60 - 4200 RPM Spindle Speed, 90 deg R & L, 45 deg F & B Head Swivel, 0.0015 - 0.003 - 0.006 IPR Feed Rate, 660 lb Work Picece Weight, R-8 Spindle Taper, 3-3/8 Inch Quill Diameter, 1/8 - 7/8 Inch Collet Capacity, 3 and 5/8 Inch T-Slots Number and Size, 2420 lb

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275595693
Features
  • Meehanite casting
  • High precision C lass 7 spindle bearings
  • Three-stage power downfeed with automatic stop
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • Chrome plated motor shaft with lower bearing support
  • Satin chrome finished dials
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
Warranty

2 Year Warranty

Height85 inch
Length63 inch
Net Weight2250 pound
Overall Dimensions66 x 63 x88.5
Part Number690178
Width65.5 inch
