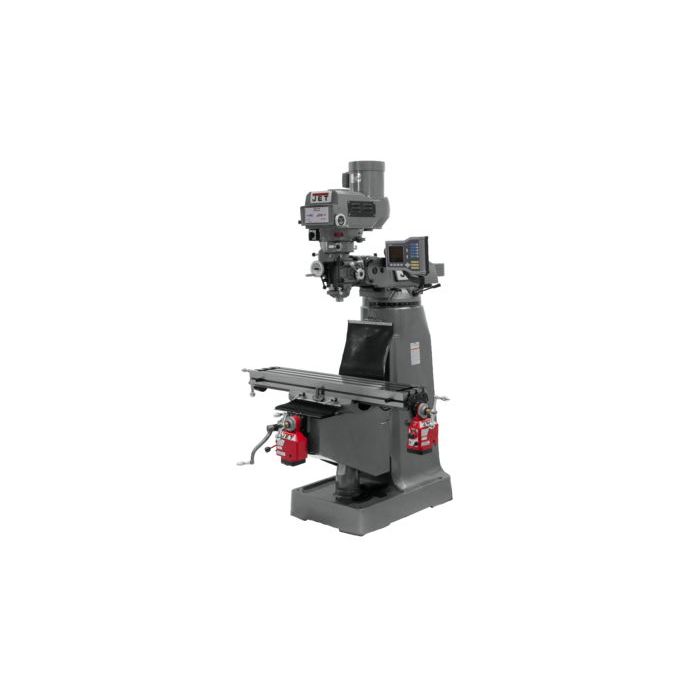

main product photo

JET 690197 JTM-4VS-1 Milling Machine With X & Y TPFA

SKU
JT9-690197
$17,599.00
Ships direct from manufacturer ?
Usually ships in 24-48 hours
Notify me when the price drops
Add to Wish List Add to Compare
Shipping Policy Return Policy

JET Milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET Step Pulley, Variable Speed and CNC Mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET machine is backed by our industry-leading TWO-year warranty.

Milling Machine, Vertical Variable Speed, Jet, 66 L X 63 W X 85 Inch H, 9 X 49 Inch Table Dimension, 5 Inch Spindle Travel Length, 17 1/2 Inch Spindle to Table Distance, 4 1/2 to 19 Inch Spindle to Column Distance, 2 HP, 115/230 V, SPH, 230 V Prewired Motor, 60 - 4200 RPM Spindle Speed, 90 deg R & L, 45 deg F & B Head Swivel, 0.0015 - 0.003 - 0.006 IPR Feed Rate, 660 lb Work Picece Weight, R-8 Spindle Taper, 3-3/8 Inch Quill Diameter, 1/8 - 7/8 Inch Collet Capacity, 3 and 5/8 Inch T-Slots Number and Size, 2420 lb

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275606622
Features
  • Meehanite casting
  • High precision Class 7 spindle bearings
  • Three-stage power downfeed with automatic stop
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • Chrome plated motor shaft with lower bearing support
  • Satin chrome finished dials
  • Heavy-duty splined motor drive
  • One-piece quill pinion and shaft
  • Heavy-duty spindle brake
  • Locks on all movable surfaces
Warranty

2 Year Warranty

Distance Spindle to Column (in.)19
Distance Spindle to Column (min./in.)6- 3/4
Head Movement (deg.)90° R & L 45° F & B
Height85 inch
Length63 inch
Max Distance Spindle to Table ( in.)17-1/2 (max)
Model Number690197
Motor2HP, 115/230V, 1Ph, Prewired 230V
Net Weight2500 pound
NoteUse of static phase converter will void warranty
Number of Spindle speedsVariable
Part Number690197
Prewired 230V230V
Quill Diameter (in.)3-3/8
Quill Down feed Rates (IPR).0015 - .003 - .006
Quill Travel (in.)5
Quill Travel w/ Powerfeed engaged (in.)5
Range of Spindle Speeds (RPM)60 - 4,200
Spindle TaperR-8
T-Slot Centers (in.)2-1/2
T-Slots Number and Size (in.)3 and 5/8
Table Cross Travel (in.)12
Table Longitudinal Travel (in.)34
Table Size (in.)9 x 49
Travel of Knee (in.)16
Travel of Ram (in.)14-1/2
Web DescriptionJTM-4VS-1 W/X & Y TPFA
Width65.5 inch
Work Table Weight Capacity (lbs.)660
