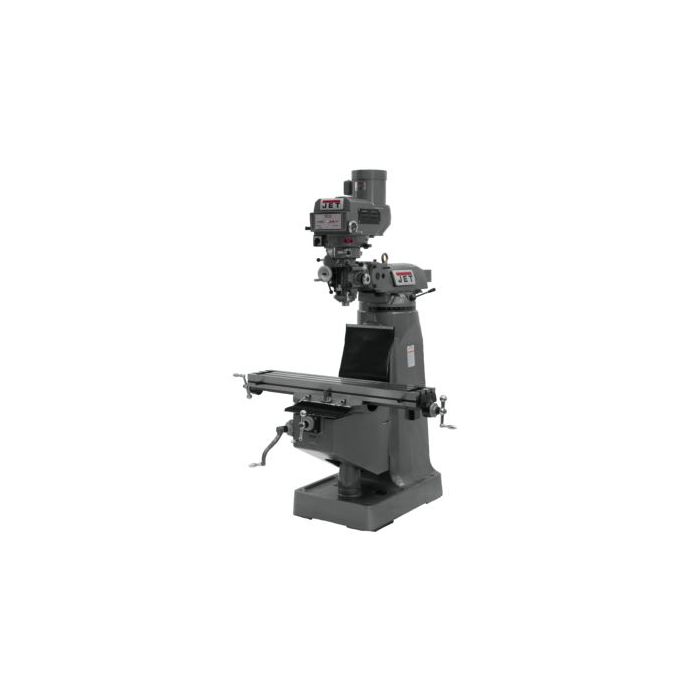

JET 690182 JTM-4VS 230/460V Variable Speed Vertical Milling Machine, 3HP/3Ph Ships direct from manufacturer
Usually ships in 24-48 hours
Constructed using the Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 66275510591 Features Certified Meehanite Castings Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Chrome plated motor shaft with lower bearing support Spindle head is internally cooled Heavy duty splined motor drive One piece quill pinion and shaft Three stage power downfeed with automatic stop Heavy duty spindle brake Locks on all movable surfaces Precision hardened and ground ways and table Adjustable gibs throughout Internal coolant tank built into casting base for use with coolant system (coolant pump not included) Tolerance test sheet included One shot lubrication system Way covers Draw bar Tool box with tools PDFs Horsepower 3 HP Motor Phase 3 Ph Stationary type Variable Speed R8 Warranty 2 Year
Motor Voltage 230/460V Prewired Voltage 230V Spindle Taper R-8 TPI Table Size Length 9" Table Size Width 49" Quill Diameter 3 3/8" Number of Spindle Speeds Variable Range of Spindle Speeds (RPM) 60 - 4,200 RPM Quill Down Feed Rates (IPR) 0.0015 - 0.003 - 0.006 IPR Spindle Travel 5" Head Movement 90 Deg R & L, 45 Deg F & B Maximum Distance Spindle to Table 17 1/2" Maximum Distance Spindle to Column 19" Minium Distance Spindle to Column 4 1/2" Collet Capacity 1/8" - 7/8" Table Longitudinal Travel 34" Table Longitudinal Travel With Powerfeed 28 3/4" Table Cross Travel 12" T-Slots Number and Size 3" and 5/8" T-Slot Centers 2 1/2" Work Table Weight Capacity 660 lbs Travel of Knee 14 1/2" Travel of Ram 13 3/8" Overall Dimensions Length 66" Overall Dimensions Width 63" Overall Dimensions Height 85"
