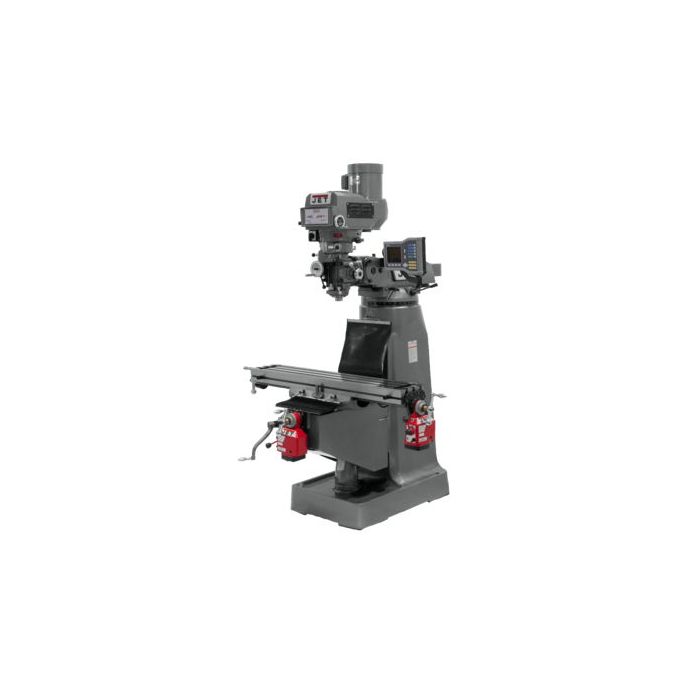

JET 690008 JTM-4VS Mill with X Powerfeed and Y Powerfeed Installed Ships direct from manufacturer
Usually ships in 24-48 hours
Constructed using the Meehanite® casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 66275551589 Features Certified Meehanite Castings Precision bored and honed milling head Large diameter quill is chromed High precision Class 7 spindle bearings Spindle head is internally cooled Heavy duty splined motor drive One piece quill pinion and shaft Three stage power downfeed with automatic stop Heavy duty spindle brake Precision hardened and ground ways Precision ground table Standard Equipment Internal coolant tank built into base for use with coolant system (coolant pump not included) One shot lubrication system Way covers Draw bar Tool box with tools Includes PDFs Horsepower 3 HP Motor Phase 3 Ph Stationary type Variable Speed R8 Warranty 2 Year
Motor Voltage 230/460 V Voltage 230 V Powerfeed X & Y-Axis Spindle Taper R-8 TPI Table Size Length 9" Table Size Width 49" Quill Diameter 3-3/8" Number of Spindle Speeds Variable Range of Spindle Speeds (RPM) 60 - 4,200 RPM Quill Down Feed Rates (IPR) 0.0015 - 0.003 - 0.006 IPR Spindle Travel 5" Head Movement 90 Deg R & L, 45 Deg F & B Maximum Distance Spindle to Table 17-1/2" Maximum Distance Spindle to Column 19" Minimum Distance Spindle to Column 4-1/2" Collet Capacity 1/8" - 7/8" Table Longitudinal Travel 34" Table Longitudinal Travel With Powerfeed 28-3/4" Table Cross Travel 12" T-Slots Number and Size 3" - 5/8" T-Slot Centers 2-1/2" Work Table Weight Capacity 660 lbs Travel of Knee 14-1/2" Travel of Ram 13-3/8" Length 66" Width 63" Height 85"
