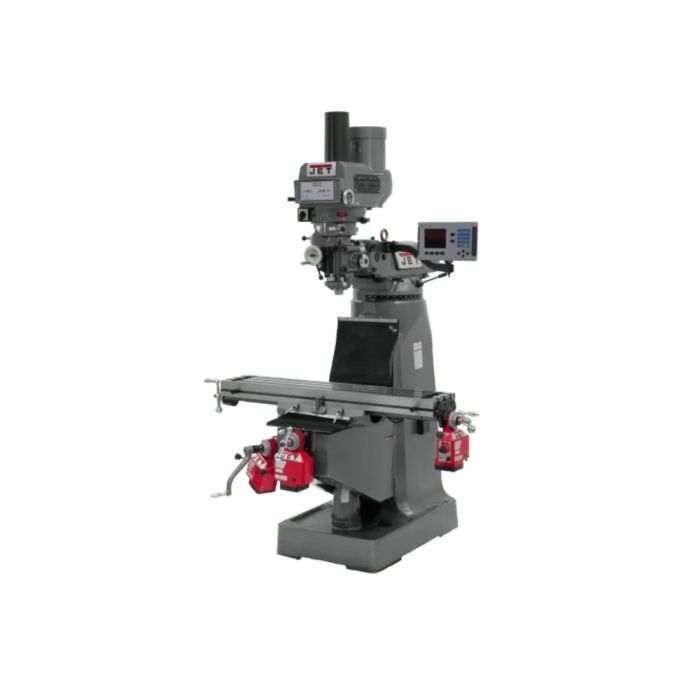

Jet JT9-690153 JTM-4VS, Mill with 3-Axis ACU-RITE 203 DRO (Quill) and X, Y, Z-Axis Powerfeeds and Power Drawbar

SKU
JT9-690153
$25,387.00
Ships direct from manufacturer ?

Constructed using the Certified Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC00662755915482
Features
  • Adjustable gibs throughout
  • Heavy duty splined motor drive
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Tolerance test sheet included
Horsepower3 HP
Motor Phase3 Ph
Warranty2 Years
TypeMill with 3-Axis ACU-RITE 203 DRO (Quill)
Collet Capacity1/8" - 7/8"
Distance Spindle to Column (Max.)19"
Maximum Distance Spindle to Table17-1/2"
Model NumberJTM-4VS
Number of Axis3 (Quill)
Overall Dimensions (L x W x H)66" x 63" x 85"
Power Draw BarPneumatic
PowerfeedX, Y and Z-Axis
Quill Diameter3-3/8"
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006 IPR
Range of Spindle Speeds (RPM)60 - 4,200 RPM
Spindle Taper (In. x TPI)R-8
Spindle Travel5"
StyleVariable Speed R8
Table Cross Travel12"
Table Longitudinal Travel34"
Table Longitudinal Travel With Powerfeed28-3/4"
Table Size (L x W)9" x 49"
Travel of Knee14-1/2"
Travel of Ram13-3/8"
T-Slot Centers2-1/2"
Weight2420 lbs
Work Table Weight Capacity660 lbs
Motor Voltage230/460 V
