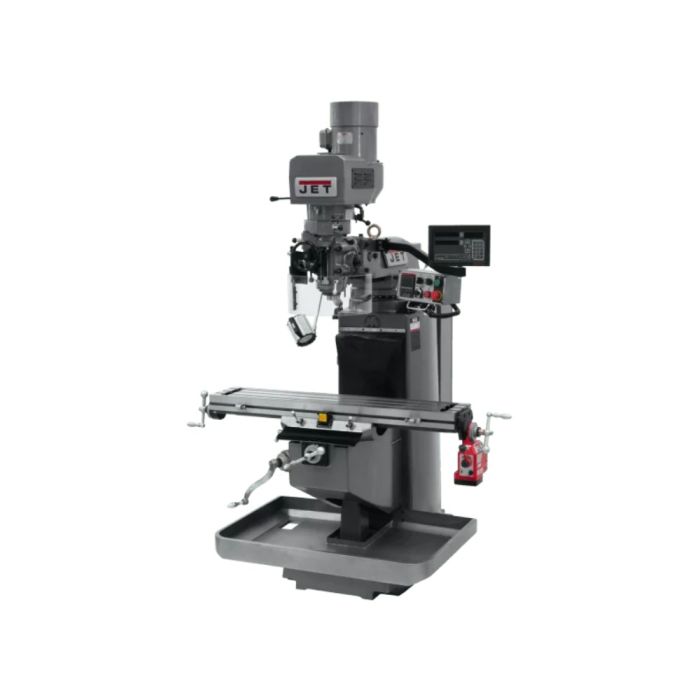

Jet JT9-690545 JTM-949EVS Mill with 3-Axis Newall DP700 DRO (Quill) with X-Axis Powerfeed Ships direct from manufacturer
Constructed using the Certified Meehanite casting process, The JTM-949EVS, 9" x 49" Electronic Variable Speed Milling Machines provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design. These new Mills have features you've come to expect and is backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00731325451979 Features Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications Dual locks on all moveable surfaces Spindle head is internally cooled extending bearing, belt and motor life Swing away control box houses an e-stop and puts all controls at the operators fingertips Swing away safety shield Table and ways are hardened up to 54 HRC and precision ground for greater accuracy The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements Horsepower 3 HP Motor Phase 3 Ph Warranty 2 Years
Type Mill with Newall DP700 DRO Collet Capacity 1/8" - 7/8" Column Width 18" Distance Spindle to Column (Max.) 18-1/8" Inverter Type Delta, B Max Distance Spindle to Table 20-3/4" Model Number JTM-949EVS/230 Number of Axis 3 (Quill) Overall Dimensions (L x W x H) 67" x 64" x 86" Powerfeed X-Axis Quill Diameter 3-3/8" Quill Down Feed Rates (IPR) 0.0015 - 0.003 - 0.006 IPR Range of Spindle Speeds (RPM) 60 - 4,500 RPM Saddle Width 11-1/2" Spindle Taper (In. x TPI) R-8 Spindle Travel 5" Style EVS Table Cross Travel 12-5/8" Table Longitudinal Travel 36" Table Longitudinal Travel With Powerfeed 30-3/4" Table Size (L x W) 9" x 49" Travel of Knee 15-3/4" Travel of Ram 15-1/4" T-Slot Centers 2-1/2" Weight 2420 lbs Work Table Weight Capacity 720 lbs Motor Voltage 230 V
