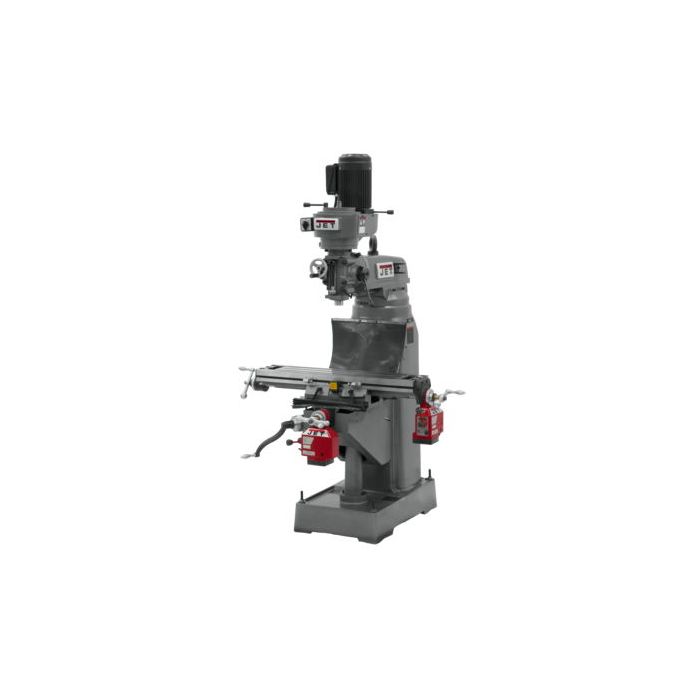

JET 690175 JVM-836-3 Milling Machine with X Powerfeed and Y Powerfeed Installed

SKU
JT9-690175
$13,562.00
Ships direct from manufacturer?
Usually ships in 24-48 hours

JET Milling machines and components provide consistent quality and performance year after year. Precision-built and designed to last, the complete line of JET Step Pulley, Variable Speed and CNC Mills allows your shop greater flexibility to meet the needs of any job. Professional manuals get you up and running, and every JET machine is backed by our industry-leading TWO-year warranty.

Milling Machine, Vertical Step Pulley, Jet, 55 L X 52 W X 78 Inch H, 7 7/8 X 35 3/4 Inch Table Dimension, 5 Inch Spindle Travel Length, 13 3/4 Inch Spindle to Table Distance, 5 1/4 to 15 3/4 Inch Spindle to Column Distance, 1 1/2 HP, 230 V Only, 3PH Motor, 120 - 1550 RPM Spindle Speed, 90 deg R & L Head Swivel, 10 Speeds, 500 lb Work Picece Weight, R-8 Spindle Taper, 3-3/8 Inch Quill Diameter, 1/8 - 7/8 Collet Capacity, 3 and 5/8 Inch T-Slots Number and Size, 1610 lb

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275551617
Features
  • Precision bored and honed milling head
  • High precision spindle bearings
  • Over 10" of front to back ram travel
  • Large diameter quill is chromed
  • Locks on all movable surfaces
  • Hardened and ground precision table
  • Head tilts left or right
Warranty

2 Year Warranty

Collet Capacity1/8 - 7/8
Distance Spindle to Column (in.)15-1/4
Distance Spindle to Column (min./in.)5-1/4
Head Movement (deg.)90° R & L
Height67 inch
Length66 inch
Max Distance Spindle to Table ( in.)13-3/4
Motor1-1/2 HP., 230V only, 3 Ph
Net Weight1630 pound
Number of Spindle speeds10
Part Number690175
Prewired 230V230V
Quill Diameter (in.)3-3/8
Range of Spindle Speeds (RPM)120 - 1550
Spindle TaperR-8
T-Slot Centers (in.)2-1/2
T-Slots Number and Size (in.)3 and 5/8
Table Cross Travel (in.)9-1/2
Table Longitudinal Travel (in.)22-1/4
Table Size (in.)7-7/8 X 35-3/4
Travel of Knee (in.)14
Travel of Ram (in.)10-1/2
Width56 inch
Work Table Weight Capacity (lbs.)500
