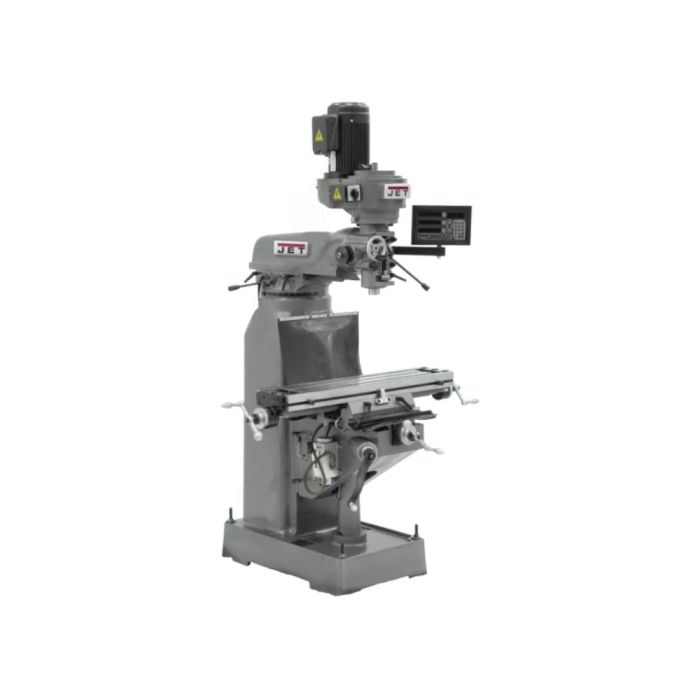

Jet JT9-691184 JVM-836-3 Mill with 3-Axis Newall DP700 DRO (Quill) Ships direct from manufacturer
The precision bored and honed milling head, coupled with the hardened and ground 8” x 36” table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Jet Condition New UPC 00662755513992 Features Graduated scale on column Hardened and ground precision table Head tilts left or right High precision spindle bearings Large Diameter quill is chromed One shot lubrication system Precision bored and honed milling head Precision ground dovetail ways Horsepower 1.5 HP Motor Phase 3 Ph Warranty 2 Years
Type Mill with Newall DP700 DRO Collet Capacity 1/8" - 7/8" Distance Spindle to Column (Max.) 15-3/4" Max Distance Spindle to Table 13-3/4" Model Number JVM-836-3 Number of Axis 3 (Quill) Number of Spindle Speeds 10 Overall Dimensions (L x W x H) 55" x 52" x 78" Quill Diameter 3-3/8" Quill Down Feed Rates (IPR) 0.0015 - 0.003 - 0.006 IPR Range of Spindle Speeds (RPM) 120 - 1,550 RPM Spindle Taper (In. x TPI) R-8 Spindle Travel 5" Style Step Pulley R8 Table Cross Travel 9-1/2" Table Longitudinal Travel 22-1/4" Table Longitudinal Travel With Powerfeed 18" Table Size (L x W) 7-7/8" x 35-3/4" Travel of Knee 14" Travel of Ram 10-1/2" T-Slot Centers 2-1/2" Weight 1610 lbs Work Table Weight Capacity 500 lbs Motor Voltage 230 V
