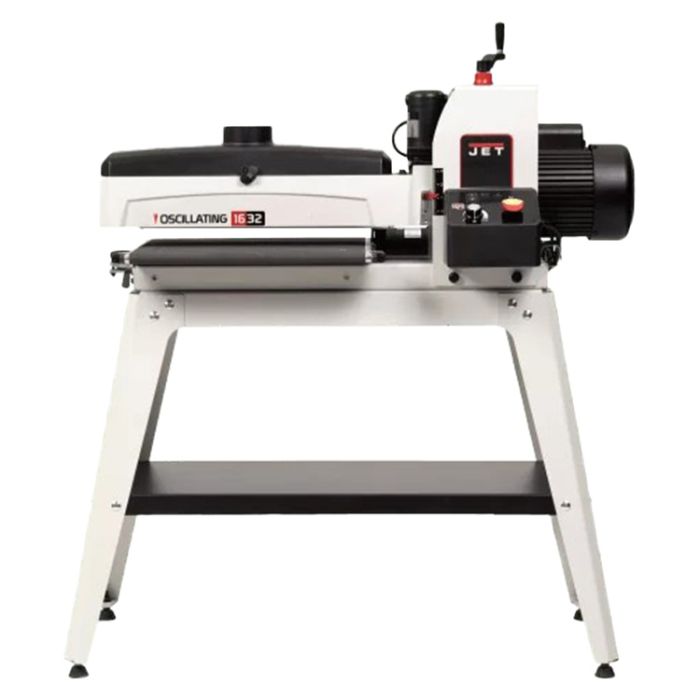

Jet JT9-723525 JWDS-1632OSC 16" x 32" Oscillating Drum Sander

SKU
JT9-723525
$2,309.00
Ships direct from manufacturer ?

The JET 1632 Oscillating Drum Sander produces an unbeatable sanding finish, with its exclusive variable speed oscillating drum moving from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmart feed control technology, tool-less parallelism adjustment, and Heavy duty steel stand make this popular sander the most innovative in its class.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
Features
  • Self-Cooling Drum
  • Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4" of oscillating stroke
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Conveyor belt Trackers reduce the need for manual belt adjustments
  • Toolless abrasive take-up clips make changing abrasives quick and easy
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Dust hose hanger for added ease of use
Horsepower1.5 HP
Type Drum Sander
Conveyor Speed (FPM) 0 to 10 FPM
Drum Bearing Diameter 1"
Drum Diameter 5"
Drum Length 16"
Drum Speed 1725 RPM
Dust Port Outside Diameter 4"
Maximum Board Thickness 3"
Maximum Board Width 16"
Minimum Board Length 2 3/8"
Minimum Board Thickness 1/32"
Motor Amps 14 A
Recommended Circuit Size (Amps.) 20 A
Weight 191 lbs
